Specification
Brand : GS Tooling
BulletPoint1 : Shank Type: Taper Shank
BulletPoint2 : Taper Size: BT40
BulletPoint3 : Used for layout, set-up, checking heights, depths and setting angles
BulletPoint4 : Projection (Decimal Inch): 6.30"
BulletPoint5 : Nose Diameter (Decimal Inch): 0.94
CutType : Taper
ExteriorFinish : Zinc
ExternallyAssignedProductIdentifier1 : 0752273562487
ExternallyAssignedProductIdentifier2 : 752273562487

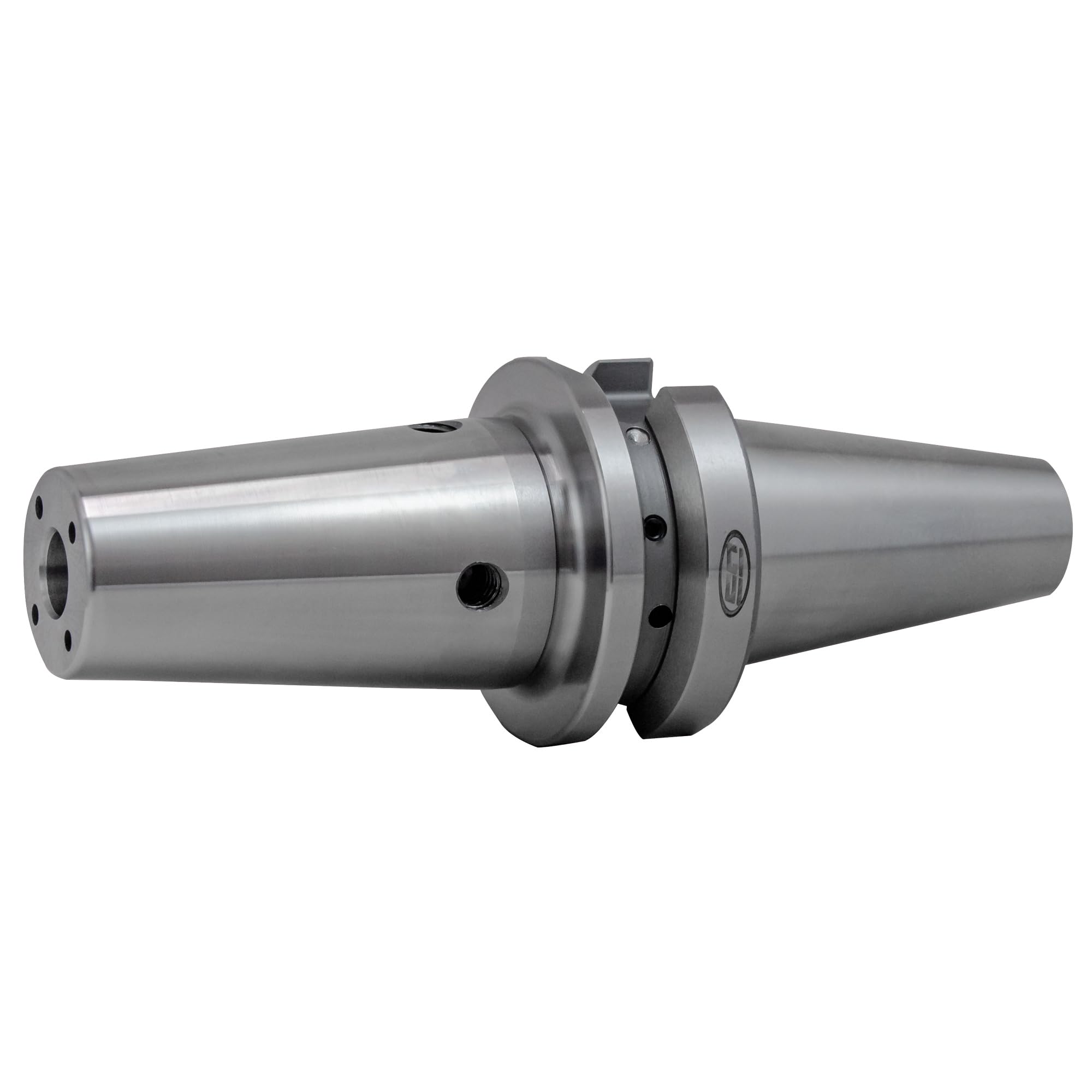

ItemName : GS Tooling 542482 BT40 1/2" x 6.30" Shrink Fit Holder with Coolant Ports
ItemPackageDimensions_Height : 9 inches
ItemPackageDimensions_Length : 3.18 inches
ItemPackageDimensions_Width : 3.18 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : tool-holders
Manufacturer : GS Tooling
Material : Aluminum
MeasurementSystem : Imperial
NumberOfItems : 1
PartNumber : 542482
ProductDescription : Shank Type: Taper Shank
Taper Size: BT40
Hole Diameter (Inch): 1/2"
Projection (Decimal Inch): 6.30"
Nose Diameter (Decimal Inch): 0.94
Through Coolant: Yes
Unsurpassed Accuracy: Concentricity of ?0.0001" (3µm) with tool shrunk in holder. Coolant Ports: Each holder has 4 coolant ports in the nose to ensure coolant gets right to the tool. Max Gripping Torque: Tool is gripped 360º along the entire length of bore producing very high gripping torque, preventing chatter. Increased Production: Decrease down time - the total time elapsed to remove one cutting tool and insert another is less than 10 seconds. Balanced: GS follows the strictest balance standards. Our holders are pre-balanced G2.5 up to 30,000rpm Extended Holder Life: With double tempered tool steel construction, reduced centrifugal forces, minimized bore contamination, and minimized chatter, a GS Shrink Fit Toolholder should far outlast a standard end mill holder. Chip load distributed evenly along cutting edge of tool which results in longer tool life Short projections are possible because no mechanical clamping devices are used. This results in greater rigidity and resistance to bending. Since Shrink Fit toolholders have no moving parts they offer the greatest repeatability of any tool holding system on the market
ProductSiteLaunchDate : 2023-06-20T14:38:13.806Z
UnitCount : 1
