Specification
Brand : CME Tools
BulletPoint1 : HSK 63A Taper Shank
BulletPoint10 : Drawbar Thread Size: 5/8x11UNC
BulletPoint2 : Easily install and tighten collets by adjusting a captive screw in the taper using an allen wrench
BulletPoint3 : Slim Fit; Able to reach into deep and narrow pockets
BulletPoint4 : 6" Projection; 0.56" Nose Tip Diameter; 1.2" Nose Base Diameter, 7.16" Overall Length
BulletPoint5 : Includes: Collet Chuck, 1/8" Collet, 3/16" Collet, 1/4" Collet
BulletPoint6 : Taper Nose Diameter (Min): 0.39"
BulletPoint7 : Projection Length: 3.15"
BulletPoint8 : Max Balanced To: G2.5 30,000 RPM
BulletPoint9 : Taper Nose Diameter (Max): 0.630"
CutType : Taper
ExternallyAssignedProductIdentifier : 6975587302325
ExternallyAssignedProductIdentifier1 : 0000120278006
ExternallyAssignedProductIdentifier2 : 000120278006
ExternallyAssignedProductIdentifier3 : 00769053009353
IncludedComponents : Fitted in case

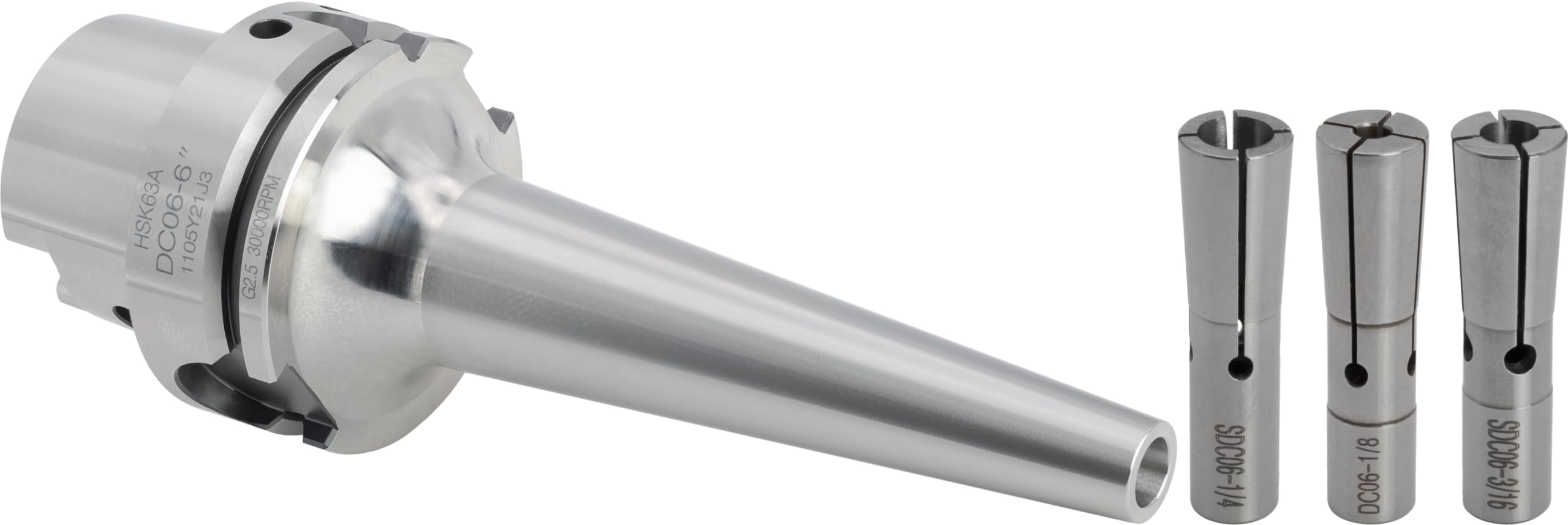

ItemName : HSK 63A Taper Slim Fit DC-6 Collet Chuck, Tool Holder Set, 6" Projection, Balanced to G2.5 at 30,000 RPM, With 1/8", 3/16", 1/4" Collets
ItemPackageDimensions_Height : 18.288 centimeters
ItemPackageDimensions_Length : 10.668 centimeters
ItemPackageDimensions_Width : 11.43 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : tool-holders
Manufacturer : CME Tools
Material : 20CrMnTi
MeasurementSystem : Imperial
ModelNumber : 2100-0001
NumberOfItems : 1
PartNumber : 1715
ProductDescription : Collet Chuck Tool Holder Set
ProductDescription1 : Mirror Finished Taper ground to AT3 or better specification ensures 80% or more contact with spindle to reduce harmonics and improve runout tolerance
ProductDescription2 : Pilot Contact Inside bore are precision turned to engage a better contact with retention knob's pilot to increase rigidity
ProductDescription3 : Taper End Face Precision turning surface finish provide perpendicular contact with the flange of retention knob to increase rigidity
ProductDescription4 : Pre-Balance Design Unique design feature in the flange to minimize the off-balance nature of CAT 40 taper specification. On the shoulder under the flange, a side is mill flat to compensate the weight of the metal chips lost from forming the spherical hole in the flange. This design allows the left side and right side of the holder to achieve 50-50 perfect weight distribution in its upright position, like the position inside a machine spindle. Symmetrical design in evenly weight distribution will minimize centrifugal force in high speed spinning and thus maximize the holder's ability to hold the cutting tool concentric to spindle rotation
ProductDescription5 : .0002" Runout at 4xD Length To achieve 3 micron or better internal bore runout, our internal bore are precision ground on Toyo CNC grinder from Japan. There is not cutting corner on this time consuming internal grinding process and the low runout would contribute to longer cutting tool life and better surface finished.
ProductSiteLaunchDate : 2024-04-25T19:30:10.081Z
Size : 6 in Projection
Style : XNS-0520 Style
SupplierDeclaredDgHzRegulation : not_applicable
ToleranceHeld : Precision
UnitCount : 1
