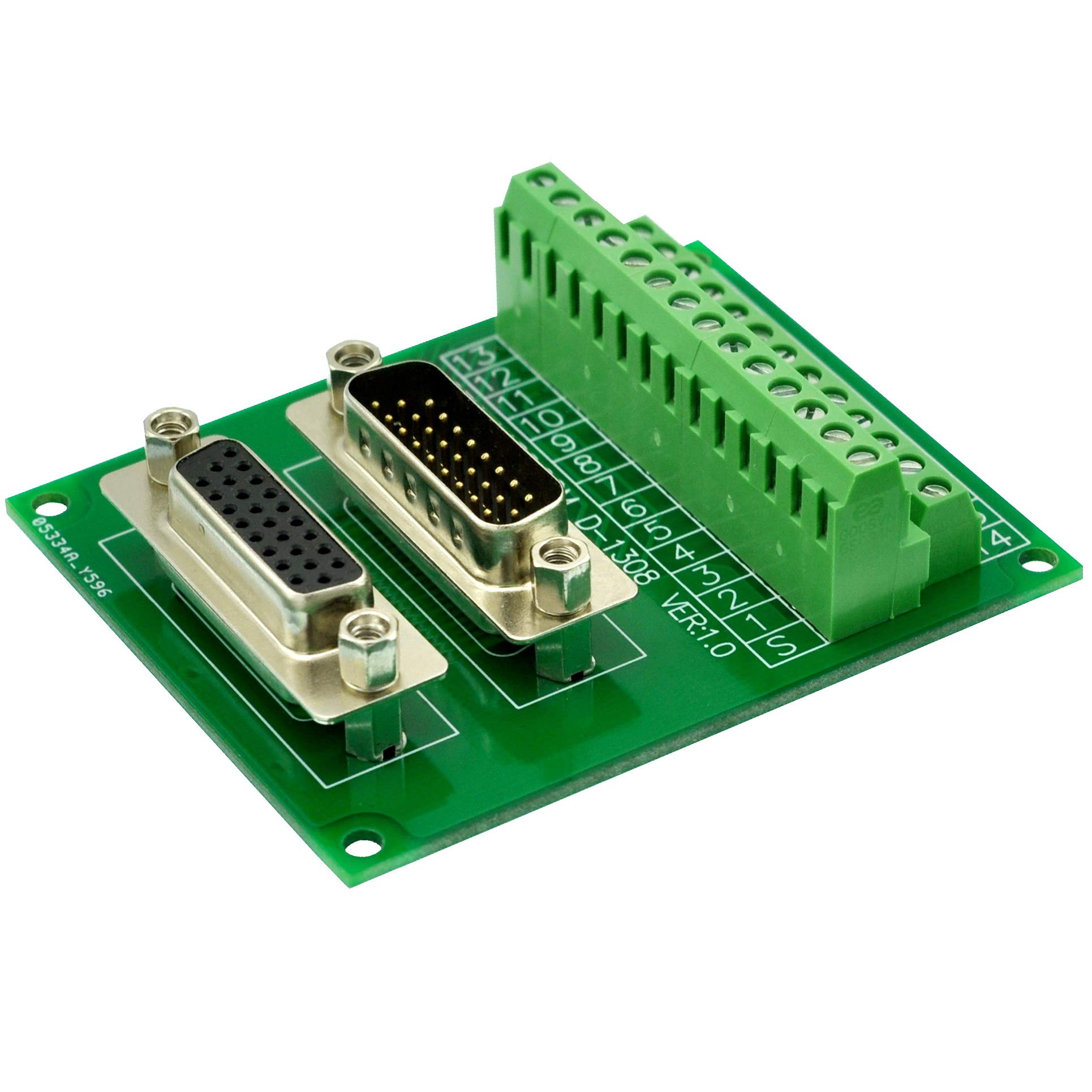

CZH-LABS 26-Position Green Screw Connector, DB26HD Male/Female Header Breakout Board

CZH-LABS 26-Position Green Screw Connector, DB26HD Male/Female Header Breakout Board

Customer rating ★★★★★ 4.2 stars

Imported from USA | Ships in 10 working days

5% instant discount on UPI | Cash On Delivery available

1

₹ 4700/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Proceed to Pay

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : CZH-LABS
BulletPoint1 : Standard DB26HD Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
BulletPoint2 : Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC
BulletPoint3 : Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
BulletPoint4 : FR-4 fiber glass PCB, dual copper layers.
Color : Green
ConnectorType : Screw
CurrentRating : 1 amps
ExternallyAssignedProductIdentifier : 6937902384386
ExternallyAssignedProductIdentifier1 : 850070145176
ExternallyAssignedProductIdentifier2 : 0850070145176
IncludedComponents : Terminal Blocks
ItemName : CZH-LABS 26-Position Green Screw Connector, DB26HD Male/Female Header Breakout Board
ItemPackageDimensions_Height : 9.9 centimeters
ItemPackageDimensions_Length : 3.1 centimeters
ItemPackageDimensions_Width : 8.8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : screw-terminals
Manufacturer : Electronics-Salon
Material : Plastic
Material1 : steel
Material2 : Brass
Material3 : Copper
ModelNumber : MD-D1308-1
MountingType : PCB Mount
NumberOfContacts : 26
NumberOfItems : 1
NumberOfLevels : 1
NumberOfPoles : 26
NumberOfPositions : 26
OperatingVoltage : 600 volts
PartNumber : MD-D1308-1
ProductDescription :

1, Standard DB26HD Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
2, Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC
3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
4, FR-4 fiber glass PCB, dual copper layers.

ProductSiteLaunchDate : 2015-01-25T08:00:00.000Z
SpecificationMet : UL
SpecificationMet1 : UL
SpecificationMet2 : IEC
Style : Black
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 39121400
UpperTemperatureRating : 50 degrees_celsius
Voltage : 60 volts
