Specification
Brand : OONO
BulletPoint1 : Pluggable Terminal Block: Pluggable screw terminal block, top wire connects, pitch 5.08mm / 0.2", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).
BulletPoint2 : PCB mount Terminal Block: PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).
BulletPoint3 : High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. FR-4 fiberglass dual copper layers PCB.
BulletPoint4 : UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.
Color : Green
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 6954525631673
IncludedComponents : Distribution Module

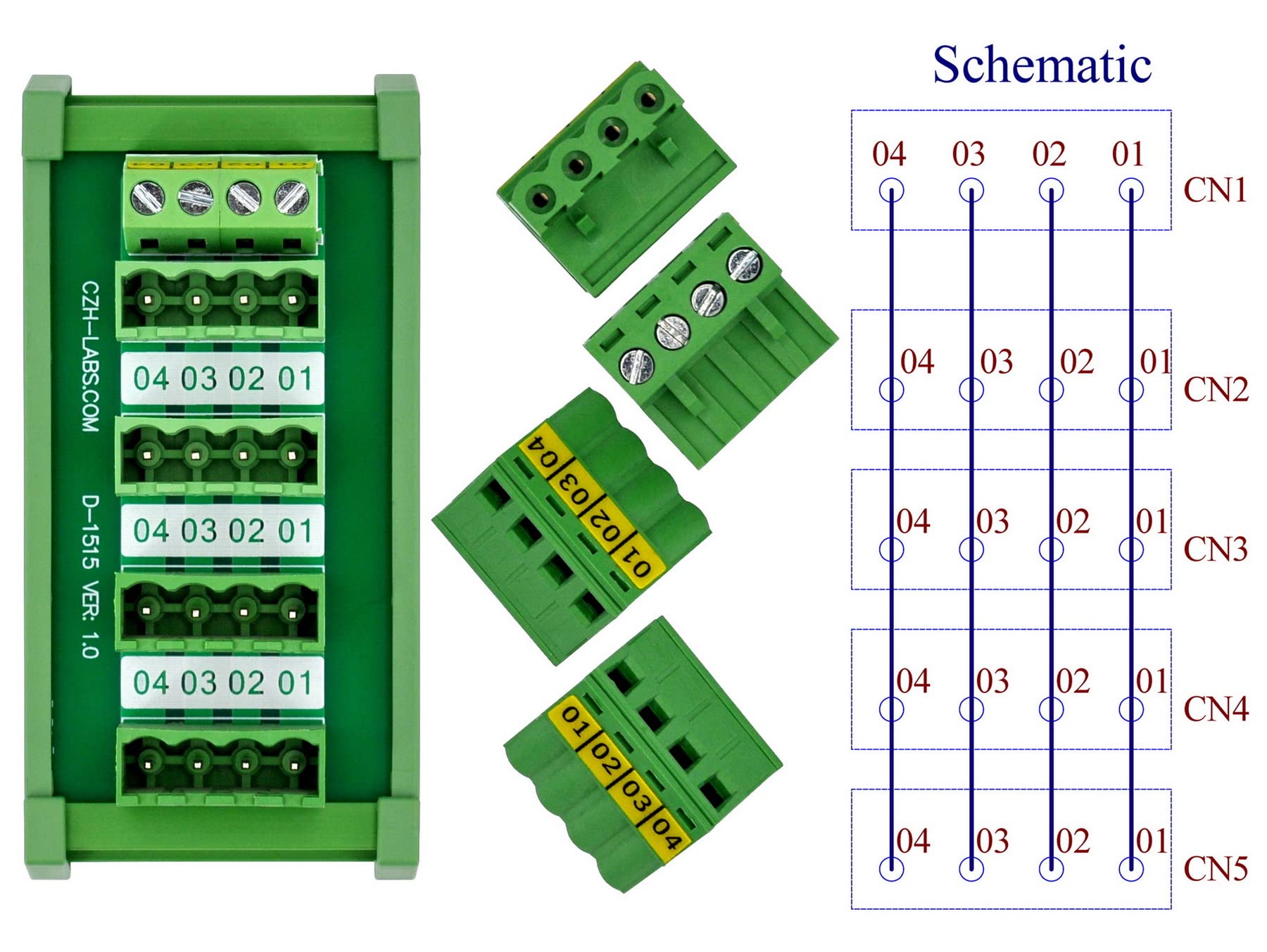

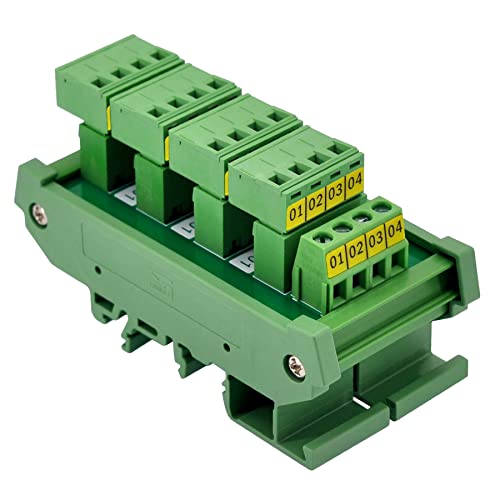

ItemName : Slim DIN Rail Mount 10A/300V Pluggable Screw Terminal Block Distribution Module (5x4 Position)
ItemPackageDimensions_Height : 2.12 inches
ItemPackageDimensions_Length : 3.97 inches
ItemPackageDimensions_Width : 2.36 inches
ItemPackageQuantity : 1
ItemTypeKeyword : screw-terminals
Manufacturer : CZH-LABS
Material : Nylon
ModelNumber : D-1513T to D-1520T series
MountingType1 : PCB Mount
MountingType2 : DIN Rail Mount
NumberOfItems : 1
NumberOfLevels : 1
NumberOfPoles : 4
NumberOfPositions : 4
OperatingVoltage : 300 volts
PartNumber : D-1513T to D-1520T series
ProductDescription : 1, Pluggable Terminal Block: Pluggable screw terminal block, top wire connects, pitch 5.08mm / 0.2", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).
2, PCB mount Terminal Block: PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).
3, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. FR-4 fiberglass dual copper layers PCB.
4, UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrie

ProductSiteLaunchDate : 2016-05-09T10:11:38.769Z
Size : UK6N
SpecificationMet : RoHS
Style : 5x4 Position
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39121400
Voltage : 300 volts
