Specification
Brand : DKARDU
BulletPoint1 : Features: Onboard STM8S103 high performance microprocessor, data can be output through the serial port
BulletPoint2 : Display: The module has LED display, and the test results can be displayed through the digital tube and serial port at the same time
BulletPoint3 : Parameters: Working Voltage: 5V;Display Unit: cm;Maximum error: about 1%; Effective Measurement Distance: 3-400cm;Size: 24.2x35.1mm/0.95x1.38 inch
BulletPoint4 : Serial Port Output: plug in the ultrasonic module, the port VCC, TX, RX, GND are respectively connected to the 5V, RX, TX, GND of the USB to TTL module.
BulletPoint5 : Details:Effective test distance is 3cm-400cm, over the range may result in data inaccuracy or displaying 000.For more details, please go to the address:https://bit.ly/38RKuUv
BulletPoint6 : 【Packages】 1*Black Shark MagCooler 4 Pro Cooler, 2* removable grips, 1*Type-C cable, 1* User Manual. Before using, please remove the protective film on the bottom of the cooler and attach the cooler magnetically to the back of the device. For non-magnetic phone, please install the removable grips first before installing it on the phone. The cable only supports powering up the cooler, and does not support fast charging for mobile phones.
Color : Module
CompatibleDevices1 : iPhone
CompatibleDevices2 : Android Phone
CompatibleDevices3 : Tablet
CompatibleDevices4 : iPad
ConnectivityProtocol : Wi-Fi
ConnectorType : Plug In
ControlMethod : remote
CoolingMethod : Air
ExternallyAssignedProductIdentifier1 : 687117703392
ExternallyAssignedProductIdentifier2 : 0687117703392
IncludedComponents : JSN-SR04T

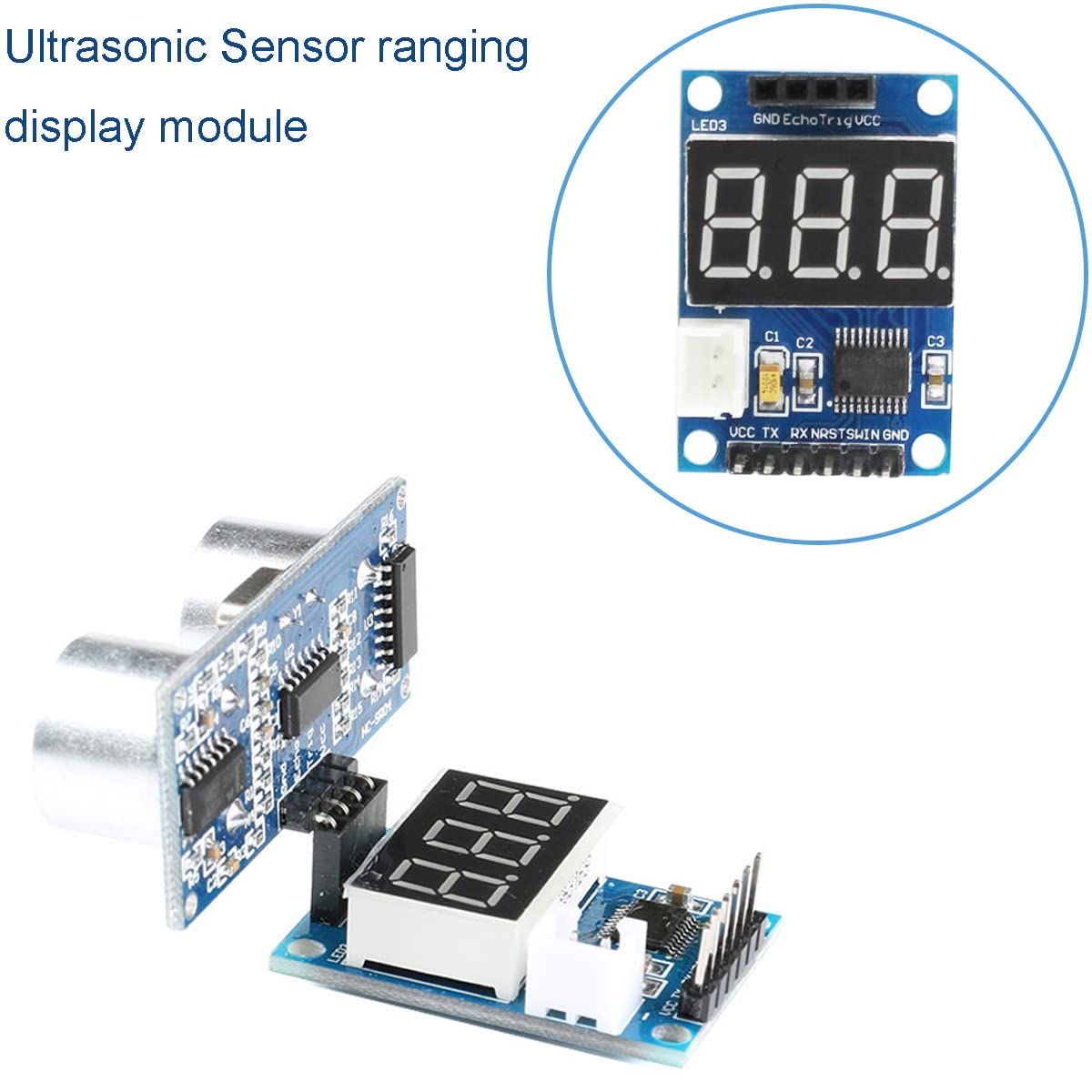

ItemName : DKARDU 2 pcs HC-SR04P/SR04 Ultrasonic Sensor ranging Display Module 5V Test Board Display Range Finder LED Display Module with Dupont Cable for Arduino Robot
ItemPackageDimensions_Height : 16.4084 centimeters
ItemPackageDimensions_Length : 2.2098 centimeters
ItemPackageDimensions_Width : 6.8072 centimeters
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : ultrasonic-proximity-sensors
Manufacturer : DKARDU
Material : Copper
MaximumRange : 6 meters
ModelName : Fafeicyuh3caievqs-13
ModelNumber : JK-US-493
MountingType : Plug In Mount
NumberOfBoxes : 1
NumberOfItems : 2
OperatingVoltage : 5 volts
OperationMode : automatic
PartNumber : JK-US-493
PowerConnectorType : 2-Pin
ProductDescription : Product Description:
Features:
Onboard STM8S103 high performance microprocessor.
Digital tube display for easily viewing data result
Working Voltage: 5V
Data can be output through the serial port
Display Unit: cm
Maximum error: about 1%; Effective Measurement Distance: 3-400cm
Size: 24.2x35.1mm/0.95x1.38 inch

Interface Port Manual:
VCC for 5V power interface
TX for module serial port transmit terminal
RX for module serial port receive terminal
NRST/SWIN for Reserved STM8 programing download port
GND for 5V power interface

Specification:
Test result can be displayed through digital tube and serial port at the same time.
Digital Tube Display: plug in the ultrasonic module directly, connect to the 5V power supply.
Serial Port Output: plug in the ultrasonic module, the port VCC, TX, RX, GND are respectively connected to the 5V, RX, TX, GND of the USB to TTL module. The serial communication baud rate is 9600 and the output format is“D: XXX\R\N", where XXX represents distance. The display unit is cm.

Note:
The area of the tested object which are flat and have strong reflective ability is not less than 0.5 square meters otherwise it will affect the test results.
Effective test distance is 3cm-400cm, over the range may result in data inaccuracy or displaying 000.

Package includes:
2 x Ultrasonic ranging display module
1 x 20-pin Male and female DuPont cable
ProductSiteLaunchDate : 2022-06-30T07:06:10.558Z
Size : 1.57x1.1in,wire length47.24in
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
TerminalType : Serial Port
UnitCount : 2
UnspscCode : 39122200
Voltage : 12 volts
Wattage : 27 watts
