Specification
Brand : FIYA
BulletPoint : MODEL NUMBER: IF5930
BulletPoint1 : Product Name : Ultrasonic Transducer;Model No. : TR40-12;Max. Input Voltage : 20Vrms
BulletPoint2 : Shock Impact : 50G;T40-12(Transmitter) : Center Frequency: 40KHz ± 1KHz,Sound Pressure Level*4: 112dB(Min.),Attenuation of Sound Pressure Level: -10dB(Max.),Bandwidth: 5KHz(Min.);R40-12(Receiver) : Center Frequency: 40KHz ± 1KHz,Sensitivity: -67dB/v/ubar(Min.),-6dB Directivity: 80 Degree,Bandwidth: 5KHz,Capacitance: 2500pF
BulletPoint3 : Operation Temperature : -30C to +80C;Operating Relative Humidity*1 : 10-90%;Storage Temperature : -40C to +90C
BulletPoint4 : Soldering Temperature : 240C;Body Size(Each) : 12.6 x 9.4mm / 0.5" x 0.37"(Dia.*T);Pin Size : 0.7mm x 6.3mm(Dia.*L)
BulletPoint5 : Housing Material : Aluminum;Weight : 4g;Package Content : 1 Pair x Ultrasonic Transducer(The Transmi
Color : Multiple Colors
IncludedComponents : Case
ItemName : IIVVERR Pair Aluminum Housing 40KHz Ultrasonic Transducer Transmitter Receiver (Par de aluminio con receptor de transmisor de transductor ultrasónico de 40KHz
ItemPackageDimensions_Height : 6.2 centimeters
ItemPackageDimensions_Length : 22 centimeters
ItemPackageDimensions_Width : 12.5 centimeters
ItemTypeKeyword : ultrasonic-proximity-sensors
Manufacturer : IIVVERR
Material : Other
ModelName : GHJK00459
ModelNumber : GHJK00459
NumberOfItems : 1
PartNumber : 39cf2404619adeb
PowerSourceType : Manual
ProductDescription : IIVVERR Pair Aluminum Housing 40KHz Ultrasonic Transducer Transmitter Receiver (Par de aluminio con receptor de transmisor de transductor ultrasónico de 40KHz

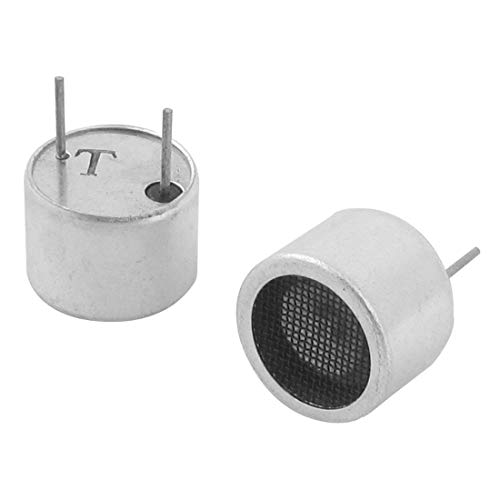

The T40-12 and R40-12 are matched pair ultrasonic transmitter and receiver respectively operated at 40KHz center frequency with 12.6mm diameter. This transducer utilizes the piezoelectric properties of engineering ceramic that provides high sound pressure and high sensitivity. Features: high sound pressure, high sensitivity, air medium, aluminum housing. Applications: auto switching, car obstacle avoidance, range finder, fluid level control, burglar alarm. Note: the bottom of the transducer is marked with T, which stands for Transmitter, R stands for Receiver.
The T40-12 and R40-12 are matched pair ultrasonic transmitter and receiver respectively operated at 40KHz center frequency with 12.6mm diameter. This transducer utilizes the piezoelectric properties of engineering ceramic that provides high sound pressure and high sensitivity. Features: high sound pressure, high sensitivity, air medium, aluminum housing. Applications: auto switching, car obstacle avoidance, range finder, fluid level control, burglar alarm. Note: the bottom of the transducer is marked with T, which stands for Transmitter, R stands for Receiver.
El T40-12 R40-12 es un transmisor de ultrasonido combinado, operado respectivamente a una frecuencia central de 40 KHz con un diámetro de 12,6 mm. Este transductor utiliza las propiedades piezoeléctricas de la cerámica de ingeniería que proporciona una alta sensibilidad de alta presión de sonido. Características: alta presión de sonido, alta sensibilidad, medio, carcasa de aluminio. Aplicaciones: conmutación, evitación de obstáculos, detector de rango, control de nivel de fluido, alarma antirrobo. Nota: la parte inferior del transductor está marcada con una T, que para el transmisor, R para el receptor.
El T40-12 R40 -12 son receptores transmisores de ultrasonidos co
ProductSiteLaunchDate : 2020-10-19T16:20:12.384Z
Size : Pocket Size
Style : Manual
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
Voltage : 36 volts
