Specification
Brand : Areca
BulletPoint : Device Servers
BulletPoint1 : Flexible 24-port SAS expander module
BulletPoint10 : LCD Control Panel for easy interactive with module
BulletPoint2 : DataBolt Bandwidth Optimizer for balance faster hosts and slow SAS or SATA devices
BulletPoint3 : Integrated ARM enclosure processor for SAS SMP functions and SES support
BulletPoint4 : Supports narrow and wide port configurations
BulletPoint5 : Supports SAS and SATA drives simultaneously and compatible with leading SAS & SATA drives, SAS HBAs, and SAS RAID controllers
BulletPoint6 : UART interface for system monitoring and debugging support
BulletPoint7 : SFF-8485 compliant Serial GPIO (SGPIO) interface on internal SFF-8643 connector
BulletPoint8 : Support autonomous chassis management
BulletPoint9 : Support power optimized LSISAS35x36R expander chip
ExternallyAssignedProductIdentifier : 7635321209684
ExternallyAssignedProductIdentifier1 : 0764968124689
ExternallyAssignedProductIdentifier2 : 764968124689
HardwareInterface1 : pci_express_x1
HardwareInterface2 : pci_express_4.0
HardwareInterface3 : pci_x_4

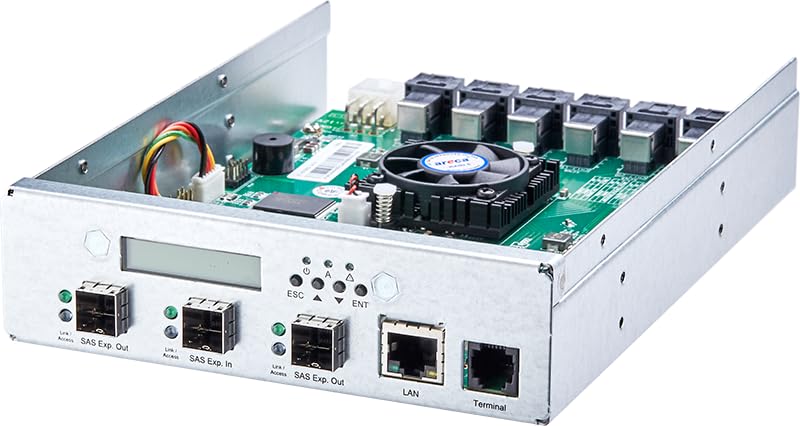

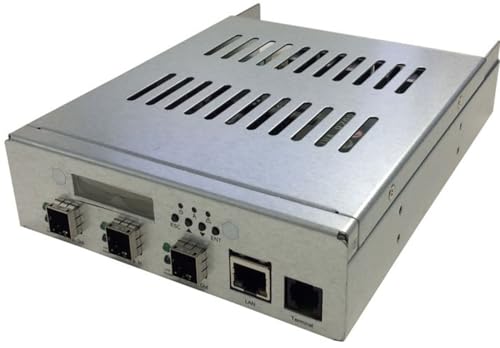

ItemName : Areca ARC-8028-24 12Gb/s 24-Port SAS Expander Module
ItemPackageDimensions_Height : 0.5 centimeters
ItemPackageDimensions_Length : 5.1 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-usb-port-cards
Manufacturer : Areca
ModelNumber : ARC-8028-24
NumberOfItems : 1
PartNumber : JYPH080
ProductDescription : ARC-8028 supports DataBolt Bandwidth Optimizer to buffer 6Gb/s data and then transfer it out to the host at 12Gb/s speeds in order to match the bandwidth between faster hosts and slower SAS or SATA devices. It also supports failover function for improving system reliability for today’s data center and storage subsystems. The 12Gb/s SAS ARC-8028 expander module is designed with an integrated ARM Cortex-R4 processor for topology management functions such as discovery, enclosure and drive management, and LED management. The ARC-8028 expander module features three or four 12Gb/s SAS SFF-8644 ports. It is designed to fit into a stand-alone box and can be installed in a 5.25” mounting shell. The ARC-8028 is ideal for enclosure customers that want to support up to 24/32 channels 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA JBOD function units using SFF-8643 SAS cables. The ARC-8028 firmware has been included the failover to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance. User can configure ARC-8028 redundant mode with multiple expander module using either RAID controllers or HBAs to achieve failover protection.
ProductSiteLaunchDate : 2025-04-11T21:26:26.072Z
Size : PCIe X1 to Oculink
SkipOffer : 1
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43201400
WarrantyDescription : 3 Years
