Specification
Brand : CY
BulletPoint : Type: Other
BulletPoint1 : Dual Chipset: ASM3142+VL822 chipset, ASM3142 supports the new feature of USB3.1 Gen2, named Multiple INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB3.1 Gen2 bus. VL822 is a versatile USB 3.1 Gen 2 Hub Controller, offering a highly integrated, application-specific design.
BulletPoint2 : 10Gbps Data transfer: Support 10Gbps data rating and 5V power. Compliant with USB Base Specification 3.1/3.0, Output USB3.0 interface and Type-C interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
BulletPoint3 : No need any extra Power Supply,build in Self-Powered IC.;;Compatible with Windows 7, 8, 10, and Mac OS 10.8.2 and above. Win 10, Mac OS, and Linux does not need any driver.It requires installing a driver when operating on Windows 7.
BulletPoint4 : The connector only transfer the usb 3.1/3.0 data and power, can't connect usb-c video/audio/thunderbolt device.;;Type C connector is the new design for USB 3.1,Reversible Design for Type C connector,Reversible plug orientation Cable direction,Support 5V/3A power charging.
BulletPoint5 : Input: Compatible slot: PCIe x4, PCIe x8, PCIe x16;;Output: Three Type-A Female,Dual Type-C Female
Color : Black
CompatibleDevices : Desktop & Motherboard
ExternallyAssignedProductIdentifier : 7684750229183
GpsrSafetyAttestation : 1
HardwareInterface : pci_express_x1
HardwareInterface1 : usb
HardwareInterface2 : pci_express_x4
ItemName : CY Card Three Type-A USB3.0 Back Panel Socket & Dual USB3.1 Type-C USB-C to PCI-E Express Card Adapter ASM3142 VL822
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-usb-port-cards
Manufacturer : CY
ModelNumber : UC-083-5P-HX
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
OperatingSystem : Windows 7, 8, 10, Mac OS 10.8.2 and above, Linux (unspecified versions)
PartNumber : UC-083-5P-HX

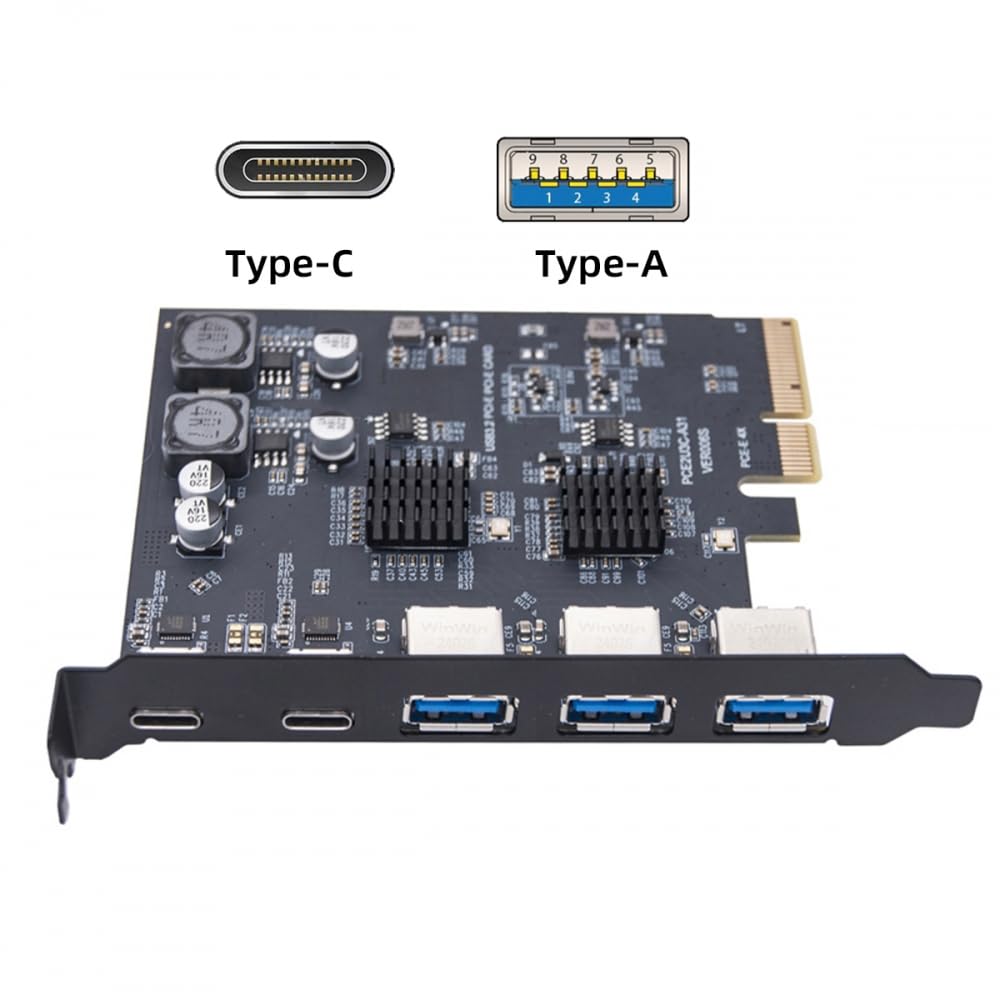

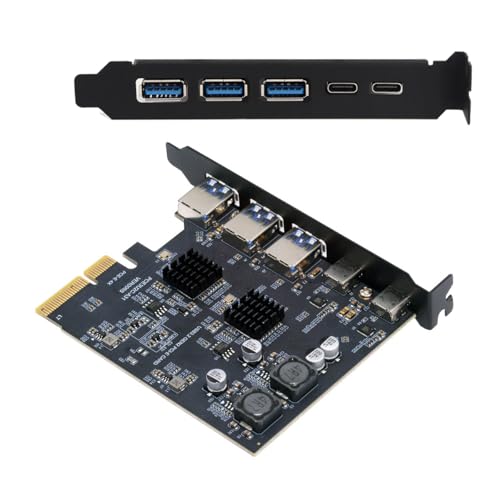

ProductDescription : Three Type-A USB3.0 Back Panel Socket & Dual USB3.1 Type-C USB-C to PCI-E Express Card Adapter ASM3142 VL822

Dual Chipset: ASM3142+VL822 chipset, ASM3142 supports the new feature of USB3.1 Gen2, named Multiple INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB3.1 Gen2 bus. VL822 is a versatile USB 3.1 Gen 2 Hub Controller, offering a highly integrated, application-specific design.

10Gbps Data transfer: Support 10Gbps data rating and 5V power. Compliant with USB Base Specification 3.1/3.0, Output USB3.0 interface and Type-C interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).

No need any extra Power Supply,build in Self-Powered IC.

Compatible with Windows 7, 8, 10, and Mac OS 10.8.2 and above. Win 10, Mac OS, and Linux does not need any driver.It requires installing a driver when operating on Windows 7.

The connector only transfer the usb 3.1/3.0 data and power, can't connect usb-c video/audio/thunderbolt device.

Type C connector is the new design for USB 3.1,Reversible Design for Type C connector,Reversible plug orientation Cable direction,Support 5V/3A power charging.

Input: Compatible slot: PCIe x4, PCIe x8, PCIe x16

Output: Three Type-A Female,Dual Type-C Female
ProductSiteLaunchDate : 2024-08-15T15:22:11.415Z
Size : 12cm
Style : 5 Ports & 10Gbps
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
UnspscCode : 43211609
WarrantyDescription : 30 Day Warranty Against Manufacturer Defects
