Specification
Brand : iDili
BulletPoint1 : The controller uses 1602 liquid crystal display, 4 buttons can set speed, working time, working mode, and the other 4 buttons are used to control the machine, respectively, fixed speed and high speed.
BulletPoint2 : The TTL level RS-232 interface is reserved on the board, and the control button also has an external interface, which can be used for connecting an external switch, a foot switch, etc.
BulletPoint3 : 8mm diameter stainless steel round guide rail, extended flanged bearing, screw rod with T8 lead 1mm screw, copper screw nut.
BulletPoint4 : The clamping is fixed by a clamp, and the M4 hand-tightening nut is fastened.
BulletPoint5 : The motor is a 42-step motor with a large torque motor and a single-turn setting of 400 steps.
BulletPoint6 : Piston mounts are adjustable up and down for use with syringes of different sizes
ExternallyAssignedProductIdentifier : 9586900120228
IncludedComponents : other

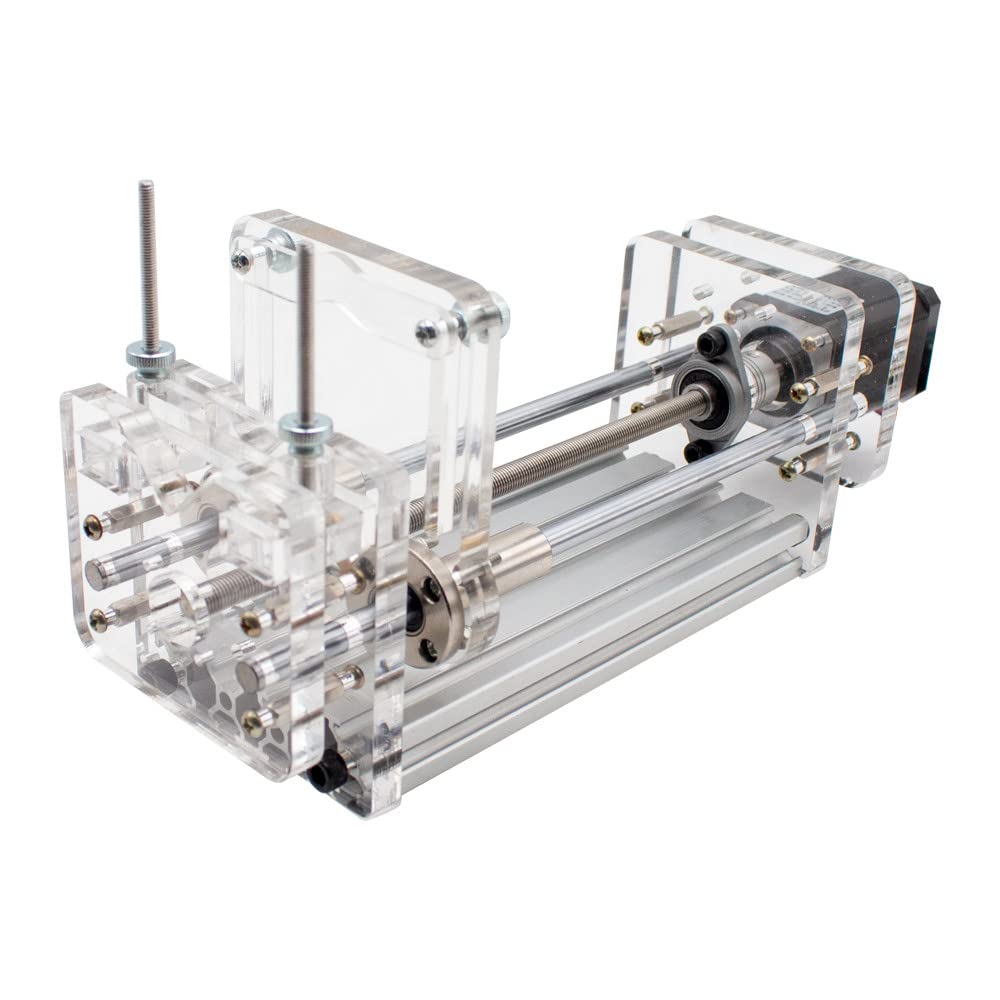

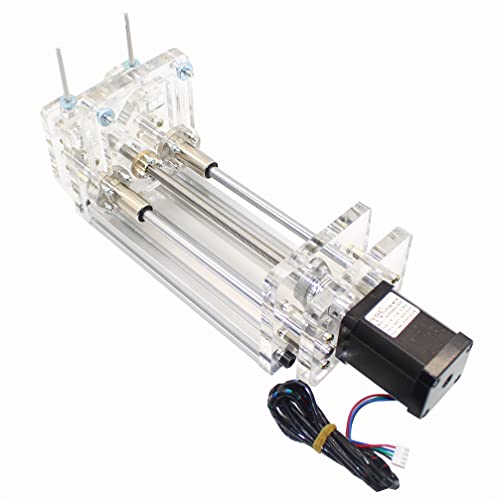

ItemName : iDili Desktop Injection Pump Syringe propeller Laboratory Micro Pump Glue dispenser 1ml~150ml 110V-220V (Only The machine)
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-pumps
Manufacturer : iDili
Material : Only the machine
NumberOfItems : 1
PartNumber : I-23-307
ProductDescription : Desktop Injection Pump Syringe propeller Laboratory Micro Pump Glue dispenser 1ml~150ml 110V-220V

Description:

8mm diameter stainless steel round guide rail, extended flanged bearing, screw rod with T8 lead 1mm screw, copper screw nut.
The clamping is fixed by a clamp, and the M4 hand-tightening nut is fastened.
The motor is a 42-step motor with a large torque motor and a single-turn setting of 400 steps.
Piston mounts are adjustable up and down for use with syringes of different sizes.
The controller uses 1602 liquid crystal display, 4 buttons can set speed, working time, working mode, and the other 4 buttons are used to control the machine, respectively, fixed speed and high speed.
The TTL level RS-232 interface is reserved on the board, and the control button also has an external interface, which can be used for connecting an external switch, a foot switch, etc.

Parameter:

Clampable syringe: 1ml ~ 150ml (less than 42mm in diameter)
Time setting: 1 second to 17 hours;
Working mode: manual control, timed work, communication control
Equipment working power: 12V2A
Adapter power supply: 100 ~ 240V / 50Hz
Slider stroke: 140mm
Single circle lead: 1mm
Size: 290mm*130mm*130mm
Weight: 1.5kg

Note:

It is not recommended to use it for electrospinning experiments, because electrospinning may cause problems such as interference, breakdown and burning.

Package Included:

1 x set of Syringe pump(as your choose)
