Specification
AutomotiveFitType : vehicle_specific_fit
Brand : ZhanHongXiang
BulletPoint1 : Car Back up camera and 9 inch DVR recorder monitor parking assistance system: 9 inch IPS Screen AHD 1080P 8 LED IR Night Vision 4Pin universal back up camera and 4 Pin aviation connector cable.Hard wired version reverse camera ,guarantees safe and display stable signal no interference image
BulletPoint2 : Come with 5m/16ft + 15m/49ft 4-Pin aviation Extension cable suitable for Long Bus Truck Trailer RV Van Motorhome Schoolbus 5th wheel Tractor Camper Lorry Pickup all other 12V/24V heavy Duty avoid blind spot
BulletPoint3 : IP69K waterproof rear mirror camera system with 4 Pin Connector, 8 LED IR Night Vison view clearly at night, 100% not wash out AHD 1080P mirror image sensor no distance lines vehicle security camera, 2.3mm lens (150°horizontal wide view angle)
BulletPoint4 : 9" DVR Recording RV video monitoring system,Build in Great Loop Record functions.Max support 128GB SD(Memory excluded),Image can be rotate UP side down or mirror none mirror at your enjoy,with 2 channel video input,can display (single large video )or (2-split video )
BulletPoint5 : Monitor will automatically switch for V2 when the reversing gear is selected( Monitor blue cable need to connect for gearbox reversing trigger+) V2 reversing priority
BulletPoint6 : Built Standard: Care to Meet Industry Standards for Quality Control, Ensuring Reliable and Consistent Performance
Color : Type C
CompatibleDevices : Monitor
ConnectorType : 4-Pin
ExternallyAssignedProductIdentifier : 9183048045330
ExternallyAssignedProductIdentifier1 : 735314336186
ExternallyAssignedProductIdentifier2 : 0735314336186
Hazmat1 : LITHIUM METAL BATTERIES CONTAINED IN EQUIPMENT
Hazmat10 : DE_SmallLithiumMetalBatteryInEquipment
Hazmat11 : EG_SmallLithiumMetalBatteryInEquipment
Hazmat12 : ES_SmallLithiumMetalBatteryInEquipment
Hazmat13 : FR_SmallLithiumMetalBatteryInEquipment
Hazmat14 : GB_SmallLithiumMetalBatteryInEquipment
Hazmat15 : IE_SmallLithiumMetalBatteryInEquipment
Hazmat16 : IN_SmallLithiumMetalBatteryInEquipment
Hazmat17 : IT_SmallLithiumMetalBatteryInEquipment
Hazmat18 : JP_SmallLithiumMetalBatteryInEquipment
Hazmat19 : MX_SmallLithiumMetalBatteryInEquipment
Hazmat2 : UN3091
Hazmat20 : NL_SmallLithiumMetalBatteryInEquipment
Hazmat21 : PL_SmallLithiumMetalBatteryInEquipment
Hazmat22 : SA_SmallLithiumMetalBatteryInEquipment
Hazmat23 : SE_SmallLithiumMetalBatteryInEquipment
Hazmat24 : SG_SmallLithiumMetalBatteryInEquipment
Hazmat25 : TR_SmallLithiumMetalBatteryInEquipment
Hazmat26 : US_SmallLithiumMetalBatteryInEquipment
Hazmat27 : ZA_SmallLithiumMetalBatteryInEquipment
Hazmat28 : 9
Hazmat3 : II
Hazmat4 : AE_SmallLithiumMetalBatteryInEquipment
Hazmat5 : AU_SmallLithiumMetalBatteryInEquipment
Hazmat6 : BE_SmallLithiumMetalBatteryInEquipment
Hazmat7 : BR_SmallLithiumMetalBatteryInEquipment
Hazmat8 : CA_SmallLithiumMetalBatteryInEquipment
Hazmat9 : CN_SmallLithiumMetalBatteryInEquipment
IncludedComponents : automotive-door-ajar-warning-switches
InstallationType : Surface Mount

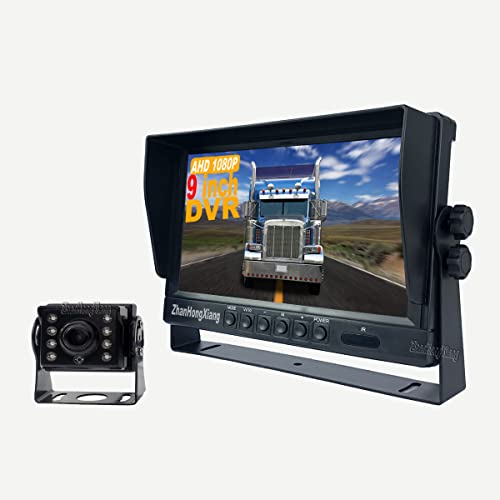

ItemName : 1080P RV Backup Camera Wired System,9 inch AHD 2-Split DVR Monitor Waterproof 8LED IR Night Vision Reverse Rear View Mirror Camera 12V-24V for Semi Bus Truck Trailer Camper
ItemPackageDimensions_Height : 38.5 centimeters
ItemPackageDimensions_Length : 9.1 centimeters
ItemPackageDimensions_Width : 19.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-backup-cameras
Manufacturer : ZhanHongXiang
Material : Copper, Polyvinyl Chloride (PVC)
ModelName : automotive-door-ajar-warning-switches
ModelNumber : A86146-DKELRSW2KAAR
NumberOfItems : 1
PartNumber : DVR9_8LED_5/15M
ProductDescription : This is new update Model AHD 1080P backup camera for rv trucks and 9 inch HD DVR recorder reverse rear view ips monitor system
The Monitor has two video input and 2-split functions
Can add the second AHD 1080P car back up Camera to display 2 video at same time

Easy and Simple to install, Only need to connect the monitor wire with vehicle electronics system:
Red wire to car key on +
Yellow wire to car battery+
Black wire to GND,
Green wire to reversing Trigger+ (or No need to connect)
Support reversing used or permanently used

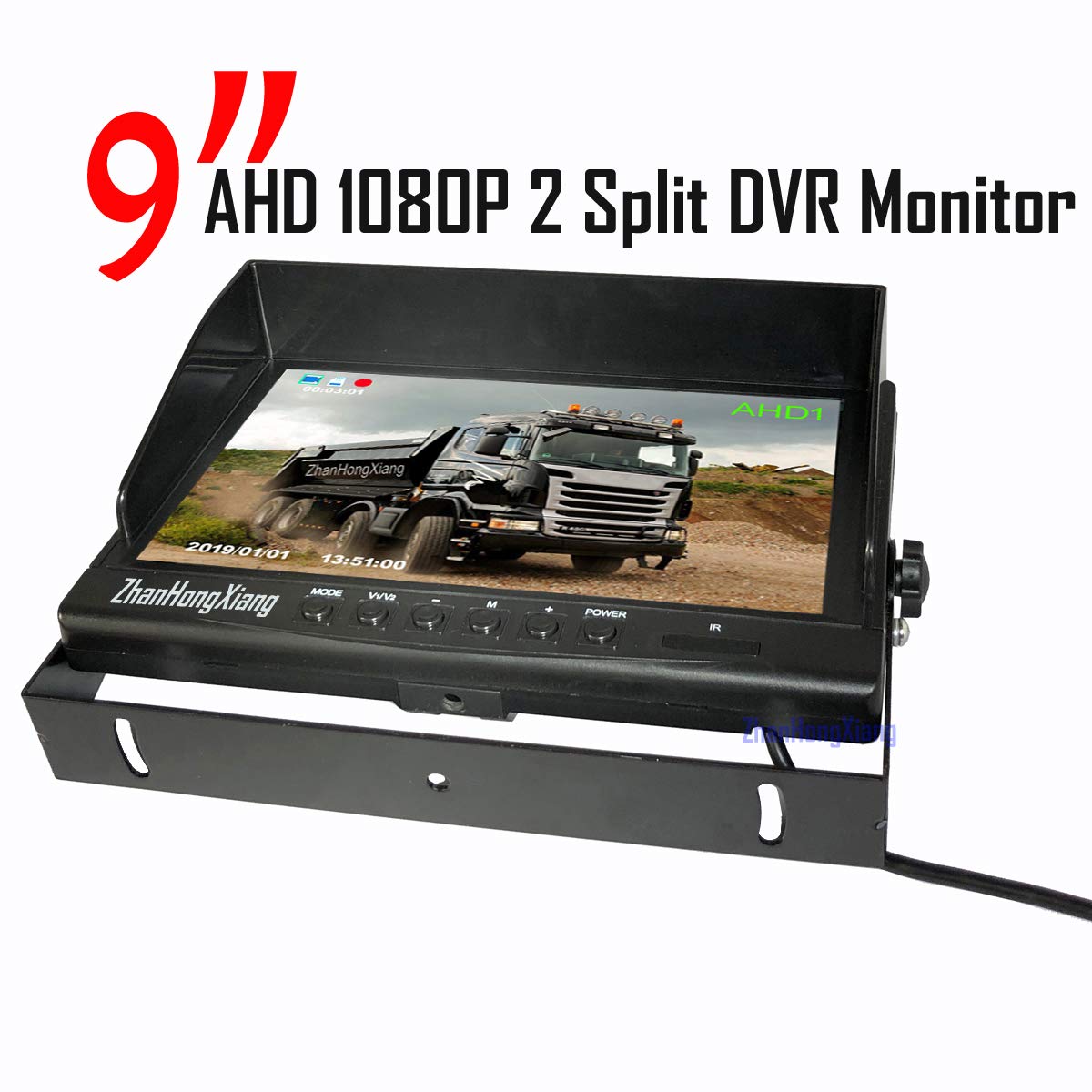

9 inch IPS AHD Screen Monitor with DVR Recorder

Monitor dimensions: 230*155mm
Resolution: 1024*600 Pixels
System: PAL&NTSC auto-switching
Power: DC 12V-24V
Consumption:5W
Video: 2 way video input
High Resolution with Split functions
Display single image or 2 split image,
Build in Great Loop DVR Recorder functions,
Supports Record 2 Channels Camera at the Same Time
Max support up to 128GB (80M/S above)
Image Can be flip with mirror /none Mirror or Upside Down
Net Weight: Approx. 1000g
Lauguage:English,Chinese

AHD 8 LED IR Car Rear View Camera

100% Not Wash Out AHD Mirror image Sensor no Grid Lines
Lens:2.3mm(150 Wide View angle)
Number of pixels:2 Megapixel Camera(1920*1080P)
Minimum illumination:0 LUX
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision:8 LED IR
Video Output:4Pin Connector
work Temperature:-20°C~+60°C
Power Requirement:DC 12V-24V
Weight: Approx 200g
Waterproof:IP 69K

Package included:

1 x 9" AHD DVR 2-Split Monitor
1 x U Shape Metal Bracket
1 x Remote Controller
1 x 4Pin 8 LED IR Rear View Reverse Camera
1 x 4Pin 15M/49ft Aviation Extension Cable
1 x 4pin 5M/16ft Aviation Extension Cable
SD Memory Card excluded

Need Additional camera only? please check this ASIN:B07XSWM1L7
Need full set with SD memory?Please check this ASIN:B087CC5NG8

ProductSiteLaunchDate : 2019-04-17T09:35:30.901Z
Size : normal
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 46171600
Voltage : 24 volts_of_direct_current
WarrantyDescription : 2 year manufacturer
