Specification
Brand : sfqipei
BulletPoint1 : 4.3-inch TFT LCD screen Monitor is directly attached to flat surface dashboard with provided adhesive foam and pedestal
BulletPoint2 : Waterproof IP68 , 18 LED Night Vision Reverse Reversing Backup Camera 120°Wide Angle with 10m Video Cable
BulletPoint3 : 4.3" Car Rear View Monitor helps in preventing accidents while driving in reverse by avoiding children, traffic, pedestrians, toys and pets while backing out of the driveway or parking space
BulletPoint4 : Automatically Switch on/off When Reversing,When parking is finished, it will switch off automatically
BulletPoint5 : Easy installation, Real-time rear view while back up
CompatibleDevices : Monitor
ConnectorType : RCA
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 713440817861
ExternallyAssignedProductIdentifier2 : 0713440817861
InstallationType : Surface Mount,Dashboard Mount

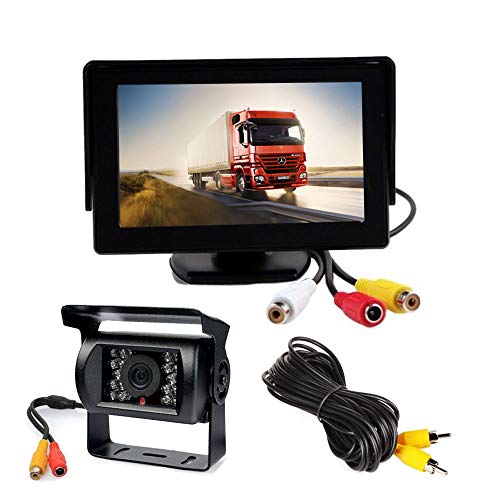

ItemName : 12V-24V 4.3" Car LCD Monitor + Waterproof 18 LED IR Night Vision Vehicle Auto Reverse Parking Backup Camera Rear View Kit with 10M cable
ItemPackageDimensions_Height : 21.844 centimeters
ItemPackageDimensions_Length : 7.62 centimeters
ItemPackageDimensions_Width : 16.002 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : vehicle-backup-cameras
Manufacturer : sfqipei
PartNumber : B3+daba
ProductDescription : Descriptions:

* 4.3-inch TFT LCD screen
* Water-proof day/night camera
* Easy installation for DIY usage
* Real-time rear view while back up
* Metal camera with wide view angle

18 IR Car Reverse CMOS COLOR CAMERA
Image sensor CMOS
TV system : PAL / NTSC (we will sent the PAL or NTSC according your country)
Scanning system PAL: 625Lines 50Field / NTSC: 525Lines 60Field
Lens: 2.8mm(120°)
Number of pixels: 500(H)*582(V) 510(H)*492(V)
Horizontal Resolution: 420 TV Lines
Scan frequency: 50Hz ~60Hz
S/N Ratio: ≥48dB(AGC OFF)
Minimum illumination: 0 LUX
Backlight compensation: Auto
White Balance: Auto Tracing
Auto Gain Control: Automatic
Night vision: Yes
Video Output: 1.0Vp-p.1.5ω. RCA Connector
Synchronous System: International Synchronization
work Temperature: - 20°C ~ +60°C
Power Requirement : DC 12 V
Focal distances: 30mm to infinite
Weight: Approx. 300g

LCD Monitor

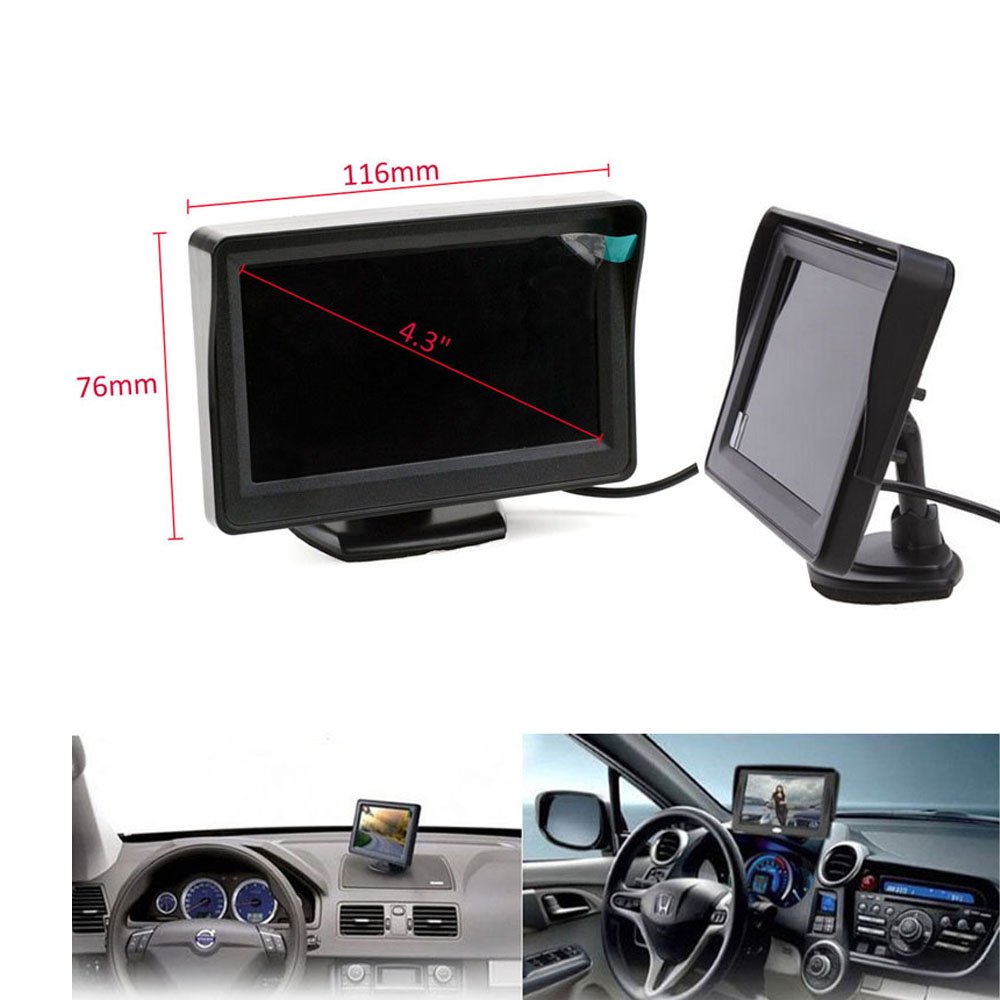

Screen size: 4.3" inch
visible Area :95mm*55mm
Operating Temp:-20°C~75°C
Power Supply:12 v
Consumption:2W
Video:2 video input
Weight:160g (Monitor only)

Q:

How To connect the cable?
A: it is very simple
1,For the reverse camera:
Connect the power from your backup light 12V+&GND to the red plug of the camera, And join the 10m video cable to the yellow plug
2.For the monitor:
Connect your car 12 DC power to the monitor (red plug), Join the 5m video cable to the white plug, if your car with the DVD player, Connect the DVD player to the yellow Plug
3.When your car reversing, Your car reverse light will automatically on, the camera will on also, The monitor will turn for rearview from the camera, once you completed reversing ,The monitor will automatically turn for your DVD player video or off
ProductSiteLaunchDate : 2018-06-08T07:00:00.000Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 43211900
Voltage : 12 volts
