Specification
Brand : Eujgoov
BulletPoint : Vibration Sensors Relay Sensor Switch Sensitivity And Time Delay Adjustable Vibration Module
BulletPoint1 : Advanced Material Detection: The film vibration sensor switch is specifically designed to monitoring and control the levels of powder and granule materials within containers, ensuring accurate detection of material levels. Its sensitivity contributes to effective automation in industrial processes, enhancing operational efficiency.
BulletPoint2 : Versatile Application: This film vibration sensor is suitable for use in various environments such as cement silos, storage facilities, and non computer controlled hoppers. It provides rapid and effective signaling to prevent overflow or depletion of materials, making it a key component for maintaining optimal material levels in industrial settings.
BulletPoint3 : Excellent Stainless Steel Construction: Built with excellent stainless steel, this film level blockage switch offers exceptional durability and erosion . This rugged construction ensures longevity and reliability, even in harsh industrial environments, reducing the need for frequent replacements.
BulletPoint4 : Adjustable Sensitivity And Flexible Installation: The thin film level meter features a five position sensitivity adjustment, allowing for customization to suit materials of varying densities. Additionally, it offers two installation methods and multiple detection blade specifications, facilitating easy setup and adaptation to a wide range of applications.
BulletPoint5 : Automatic Reset Mechanism: The innovative design incorporates a pressure relay mechanism, where the film level sensor is mounted on the side of silos or chutes. When material pressure is detected, it activates a micro switch to connect the circuit. When the material level drops and pressure is released, the circuit automatically resets.
ItemName : Film Vibration Sensor Switch, Thin Film Level Meter Film Level Blockage Switch 24-380V
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 18 centimeters
ItemPackageDimensions_Width : 15 centimeters
ItemTypeKeyword : electronic-component-vibration-sensors
Manufacturer : Eujgoov
ModelName : Eujgoovsr1mbi7p2t
ModelNumber : Eujgoovsr1mbi7p2t
NumberOfItems : 1
PartNumber : Eujgoovsr1mbi7p2t
ProductDescription : Specification:

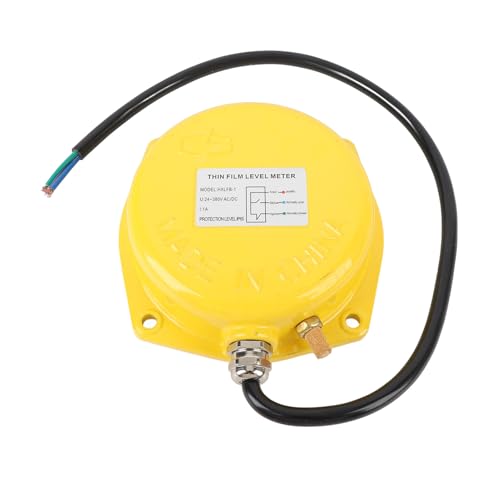

Item Type: Thin Film Level Meter
Material: Stainless Steel
Model: HXLFB-1
Operating Voltage: 24-380V AC DC
Rated Current: 1A
Load Characteristic: Pure Resistor
Operating Range: 80-120g
Reset Pressure: ≥40g
Operating Temperature: ≤100°C
Relative Humidity: ≤85%
Altitude: ≤1000m
Vibration Frequency: 1-55Hz
Acceleration: 5S
Rated Power: 500W
Operating Principle: The LFB film level indicator is a pressure relay type device that is installed on the side wall of a silo, chute, or equipment. It uses the side pressure of the material to press the film on the end of the level indicator. This pressure activates the micro switch to close the circuit. When the material level decreases, the side pressure is lost, and the circuit is automatically reset to open or close.
Application: Suitable for a wide range of modern industrial production of various material level positioning and automatic guard of silos, chutes, and equipment.

PackageList:
1 x Thin Film Level Meter
