Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : EBTOOLS
BulletPoint1 : An analog vibration sensor based on a piezoelectric ceramic sheet is an inverse transformation process that uses piezoelectric ceramics to generate vibration. When the piezoelectric ceramic piece vibrates, an electricalis generated.
BulletPoint2 : Special sensor expansion boards are used in combination, and analog ports can be weakly perceived. Vibrating electricalenable interactive work related to vibration, such as electronic drum interactions.
BulletPoint3 : ADO output: The analog voltage ceramic vibration sensor is connected to the controller analog terminal A0 according to the program. When the vibration degree is different, observing the output value of the serial port can realize the vibration-related interaction work.
BulletPoint4 : According to the greater the vibration intension, the higher the output voltage, the sensitivity of the vibration amplitude can be adjusted by the potentiometer.
BulletPoint5 : This product has high sensitivity and can be adjusted to respond with a mouth blow or an output with a hand tap (Low turn sensitivity is low, right turn sensitivity is high).
Color : 2Pack
IncludedComponents : 1 x WiFi Vibration Sensor + 2 x AAA Battery
ItemName : Piezoelectric Vibration Tapping Sensor Module 5.0V DC ADDO, High Sensitivity, Adjustable Vibration Amplitude, Interactive Work for Electronic Drum, AnalogOutput, TTLOutput
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 2 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemTypeKeyword : electronic-component-vibration-sensors
Manufacturer : EBTOOLS
ModelName : Ebtoolsif1hktosa0
ModelNumber : EBTOOLSif1hktosa0
NumberOfItems : 1
PartNumber : EBTOOLSif1hktosa0
ProductDescription : Specification:
Item Type: Vibration Switch Sensor Module
Working Voltage: 5.0V (DC)
Interface Type: AD/DO
AO: AnalogOutput
DO: TTLOutput
Working Temperature: -10 ° C ~ +70 ° C
Size: Approx. 20 x 20mm / 0.8 x 0.8in
Weight: 4.5 g / 0.2 oz(approx.)

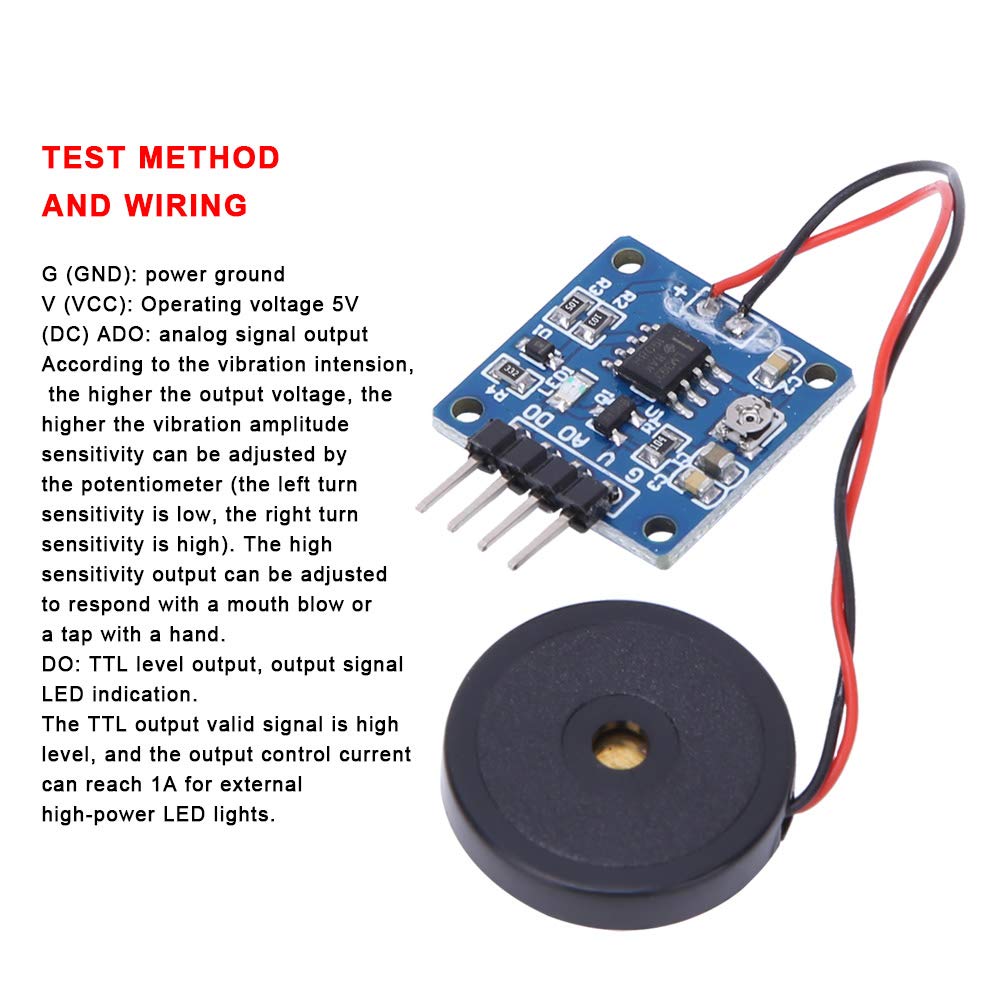

Test Method and Wiring:
G (GND):: Power ground
V (VCC): Operating voltage 5V (DC)
ADO: Analogoutput
According to the vibration intension, the higher the output voltage, the higher the vibration amplitude sensitivity can be adjusted by the potentiometer (the left turn sensitivity is low, the right turn sensitivity is high). The high sensitivity output can be adjusted to respond with a mouth blow or a tap with a hand.
DO: TTLoutput. OutputLED indication. TTL output validis high , output control power

Package List:
1 x Module

ProductSiteLaunchDate : 2023-11-03T06:11:32.648Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 31160000
