Specification
Brand : Steloproad
BulletPoint1 : HD-SDI, 30Hz—The HD-SDI Fiber converter support HD-SDI with 8-channel audio embedded, resolution up to 1080P&30Hz, Automatic reclocking 270Mbit/s - 1.48Gbit/s.
BulletPoint2 : Support RS485&Tally: The 8ch 3G-SDI to fiber converter support both Backwards RS485(Max 57600) and Tally. You can control other device or use Tally Function in broadcast.
BulletPoint3 : Long stable transmission: Full digital lossless transmission, no compression broadcast level transmission and no delay, audio and video synchronous transmission, Long transmission up to 20km.
BulletPoint4 : Loop output: The 3G-SDI Fiber Optic transceiver support loop output, you can see the image easily in local side.
BulletPoint5 : -20℃～+70℃—Industry level ultra-broad temperature range, adaptable to various environments. Working Temperature: -20℃～+70℃; Storage Temperature: -40℃～+80℃
Color : Black
CompatibleDevices : Television
CompatibleDevices1 : Camera
CompatibleDevices2 : DVD Player
CompatibleDevices3 : Flat Screens
CompatibleDevices4 : OLED
CompatibleDevices5 : LCD
ConnectorGender : Male-to-Female
ConnectorType1 : Sdi
ConnectorType2 : LC
ControlMethod : remote
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 810041737588
ExternallyAssignedProductIdentifier2 : 0810041737588
ExternallyAssignedProductIdentifier3 : 00810041737588
ExternallyAssignedProductIdentifier4 : 0850912005255
ExternallyAssignedProductIdentifier5 : 00841872163291
GpsrSafetyAttestation : 1
IndoorOutdoorUsage : indoor

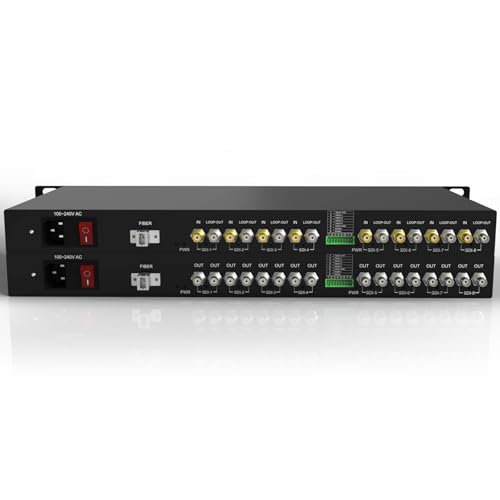

ItemName : Steloproad 8CH HD-SDI Fiber Converter 1U Rack-Mountable 1080P Video Optical Transceiver with Loop-Out + 1CH RS485 Reverse Data Uncompressed Extender Over Fiber SM LC 20km CWDM (LNK-SDI-8V1R)
ItemPackageDimensions_Height : 83.82 centimeters
ItemPackageDimensions_Length : 15.24 centimeters
ItemPackageDimensions_Width : 45.72 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : video-converters
Manufacturer : Steloproad
Material : Alloy Steel
MaximumCompatibleSize : 80 inches
MaximumTiltAngle : 60 degrees
MaximumTiltAngle1 : 30 degrees
MaximumTiltAngle2 : 10 degrees
MinimumCompatibleSize : 42 inches
ModelNumber : LNK-SDI-8V1R
MountingType : Over Fireplace Wall Mount Between 16" Spaced Wood Studs
MovementType : Fixed
MovementType1 : Articulating
MovementType2 : Height Adjustable
MovementType3 : Swivel
NumberOfItems : 1
NumberOfPins : 24
PartNumber : FLUSH2021-161
ProductDescription :

Overview：

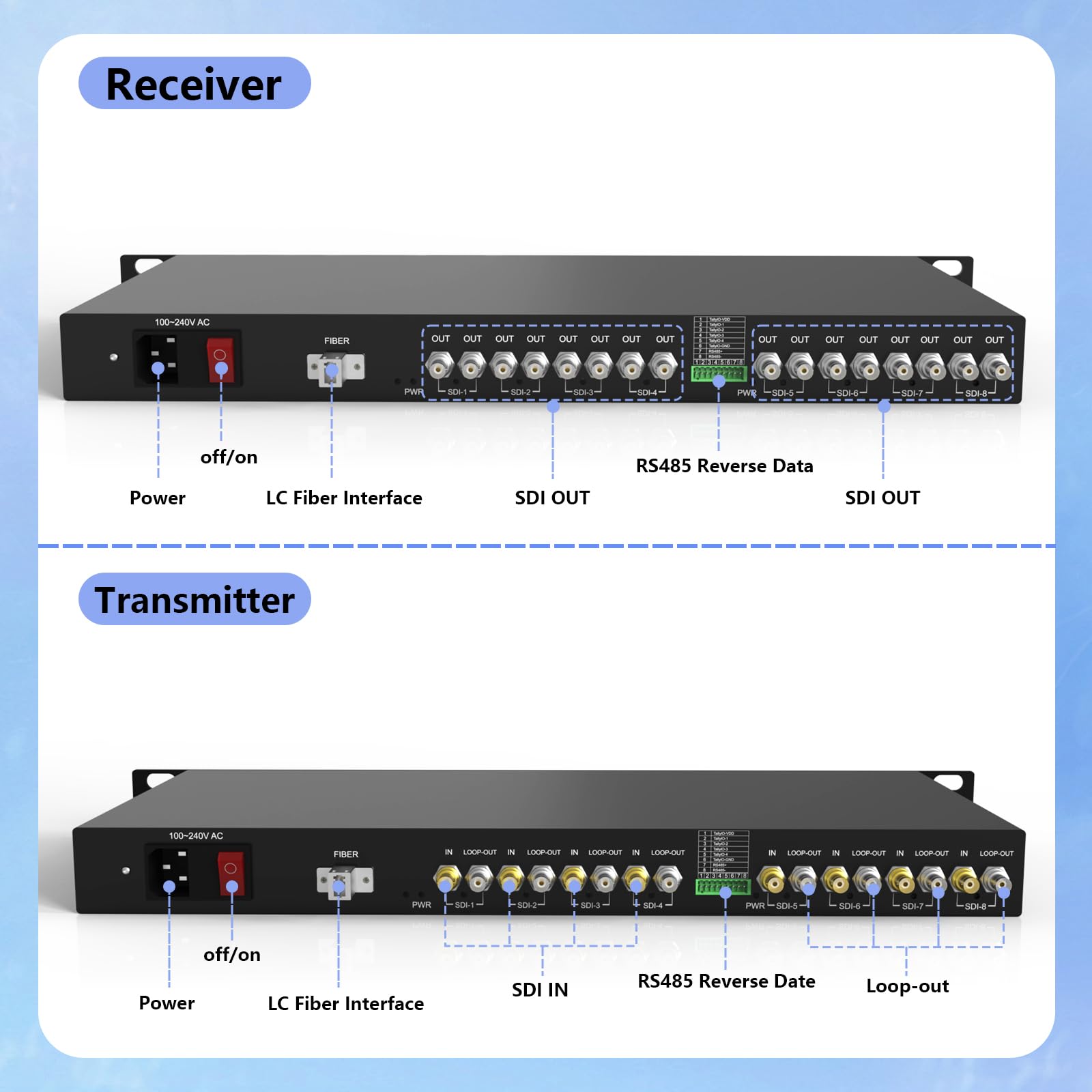

LNK-SDI-8V1R supports 8-channel HD-SDI standard high-definition video signal transmitted via single fiber optical cable, and monitor the signal locally over a HD-SDI loop output. HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal. HD-SDI Fiber Converters can simultaneously transmit 8-Ch HD -SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level supports Reverse RS-485 data communication format.

Features：

★ 8 channel HD-SDI video transmission over optic fiber

★ Automatic cable equalization to ensure signal integrity

★ Automatic reclocking 270Mbit/s - 1.48Gbit/s

★ Directly compatible with HD-SDI camera systems and support Reverse RS-485 data protocols

★ Long transmission capability at least 10 km (6.2miles), up to 20 km

★ Terminal block power input for industrial application

★ Supports hot swapping and hot plugging

★ Full digital non-compression broadcast level transmission;

★ super optic dynamic range and free of adjustment prior to use;

★ fiber optic WDM/CWDM/DWDM technique;

★ Real-time status LED indicators for troubleshooting and monitoring

★ Industry level ultra-broad temperature range, adaptable to various environments

Package：

◆ 8-channel HD-SDI Fiber Converter x 1 pair

◆ Power adaptor x 2

◆ User's Manual x 1

◆ Warranty card x 1

ProductSiteLaunchDate : 2024-08-14T06:04:13.832Z
RecommendedUsesForProduct : Professional video production, broadcasting, AV systems, data transfer
Size : 55-110 inch
Style : Flat
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43200000
WarrantyDescription : 1 year manufacturer
