Specification
Brand : EMCONRTOL
BulletPoint : USB Modules
BulletPoint1 : VIN : positive power supply (VCC)
BulletPoint2 : GND : negative power supply (GND)
BulletPoint3 : GND : negative Output (GND)
BulletPoint4 : VOUT : positive Output
BulletPoint5 : K1 : Button port 1 K2 : Button port 2
CircuitBreakerType : Standard
Color : SL92B02
ConnectorType : Through Hole
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier : 7347517281946
IncludedComponents : No

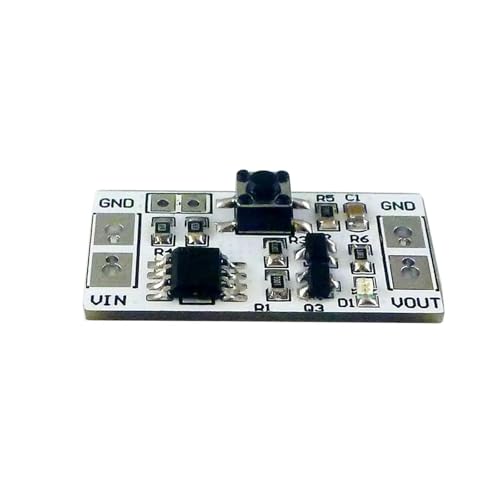

ItemName : 10PCS DC 3-20V 5A Bistable Self-Locking Switch Module LED Driver Controller Relay Touch Electronic Board
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 13 centimeters
ItemPackageQuantity : 10
ItemTypeKeyword : voltage-monitoring-relays
LowerTemperatureRating : -40 degrees_celsius
Manufacturer : EMCONRTOL
MinimumSwitchingVoltage : 3 volts_of_direct_current
ModelName : SL92B02
ModelNumber : SL92B02
MountingType : PCB Mount
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPoles : 2
OperationMode : Manual
PartNumber : SL92B02
ProductDescription : Packing list: 10PCS DC 3-20V 5000mA Bistable self-locking switch Module

Description :

Working voltage : DC 3-20V
Load current :0-3A(DC 3-4.2V);0-5A(DC 4.2-20V)
The board comes with a toggle switch (or an external switch)
Quiescent current: 15uA
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°

Size: 28 x 15 x 5mm
Weight : 1.5g

Module interface:

1. VIN : positive power supply (VCC)
2. GND : negative power supply (GND)
3. GND : negative Output (GND)
4 VOUT : positive Output
5 K1 : Button port 1
6 K2 : Button port 2

How to use: After power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again)

Note:
1 When powering on, the output state may be on or off,Connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty

Typical applications:

Automotive electronics
Industrial equipment
Motor/
Solenoid valve

LED/
Emergency lighting

Smart Home
MCU development board
Toy car
ProductSiteLaunchDate : 2025-01-13T03:37:58.419Z
Size : One Size
Style : 63a
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 39122200
