Specification
AgeRangeDescription : adult
Brand : QAXIOQCS
BulletPoint : This item is used and in working condition.
BulletPoint1 : Ammeters
BulletPoint2 : 4IN1 Din Rail
BulletPoint3 : Voltage Monitoring Relays
BulletPoint4 : Interfaces:RS232, USB
BulletPoint5 : Accessories:User manual, Power cord USB cord
BulletPoint6 : Weight and Dimension:9.4 kg / 380(W)*250(H)*145(D)
BulletPoint7 : Storage Environment:Ambient temperature –10℃ ~ 70℃ Relative humidity ≤ 70%
Color : One Color
ConnectorType : Quick Connect
CurrentRating : 40 amps
ExternallyAssignedProductIdentifier : 8995586646525
ExternallyAssignedProductIdentifier1 : 8995586548812
ExternallyAssignedProductIdentifier2 : 8995585423837

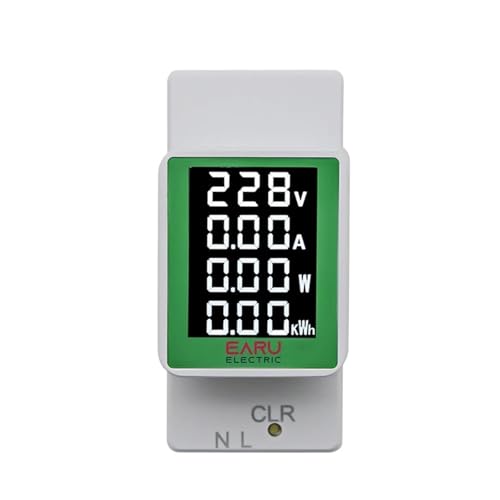

ItemName : 4IN1 Din Rail AC Monitor AC50-300V 100A Voltage Current Watt KWH Power Digital Energy Meter Volt AMP Voltmeter Ammeter Wattmeter
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : QAXIOQCS
Material : Copper
MaximumSwitchingCurrent : 40 amps
MaximumSwitchingVoltage : 32 volts
ModelName : QAXIOQCS
ModelNumber : QAXIOQCS
MountingType : Panel Mount
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Automatic
PartNumber : QAXIOQCS
ProductDescription : Ammeters
Main Function:
Measure and LCD display AC Power Voltage, Current, Active Power, Energy kWh .
Parameters:
1.Voltage
Measurement range: AC50-300V
Starting test voltage: 50V
Accuracy: ±1%
2.Current
Measurement range:0-100A
Display format:
<;10A display such as:9.99A
<;100A display such as:99.9A
Starting test current:0.02A
1.Backlight control
The backlight can be turned on or off by short press the key
2.Reset energy
Long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy, otherwise after 3 seconds it will stop flashing and the energy will not
be reset.
3.Data Storage
When the power off, the energy data and backlight status can be saved.
Package includes:
1 * AC Din Rail Multifunctional Meter
1 * 2-pin Cable
1 * English Manual
Model Number : PZEM-008
DIY Supplies : ELECTRICAL

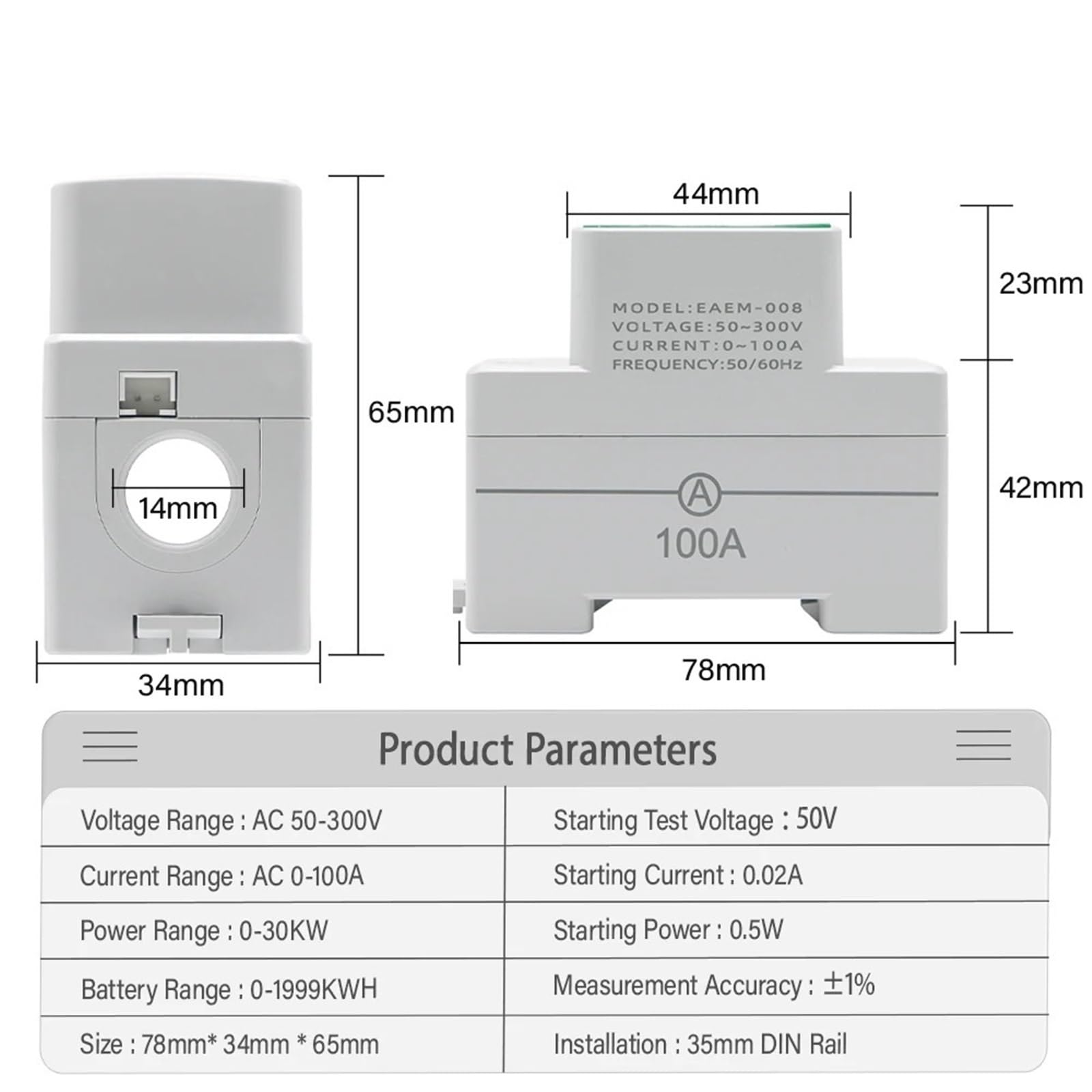

Dimensions : 78*34*65mm
Accuracy Class : ±1%
Power Supply : AC
Display Type : Digital Only
Output Voltage : AC 50~300V
Phase : Single phase
Measuring Energy Range : 100A
Power Range : 0-30KW
Battery Range : 0~1999kWh
Frequency : 50/60HZ
Rated Voltage : AC 300V
Mould 1 : Voltmeter
Mould 2 : Ammeter
Mould 3 : Wattmeter
Mould 4 : Energy meter
Installation : 35mm DIN Rai
Voltage Monitoring Relays
ProductSiteLaunchDate : 2024-10-22T07:22:13.925Z
Size : AC50-300V
SpecificationMet : RoHS
UnitCount : 1
UnspscCode : 41113600
