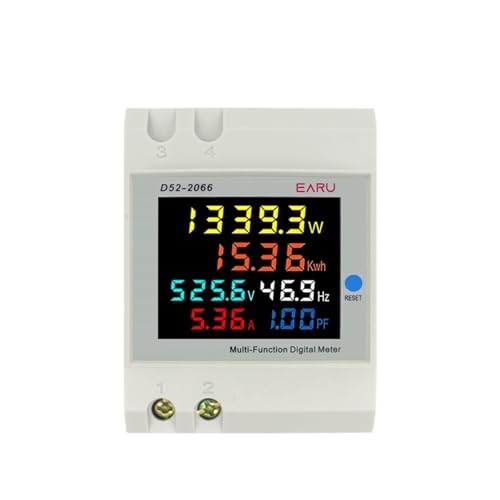

6IN1 Din Rail AC Monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric Energy Frequency Meter D52-2066(Built-in CT,AC 250-450V)

Customer rating 4.5 stars

Imported from USA | Ships in 10 working days

5% additional discount on UPI | Cash On Delivery available

1

₹14850 -34% ₹9800/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart.
EMI and GST Invoice available.

Product Information


Specification
Brand : QAXIOQCS
BulletPoint1 : Ammeters
BulletPoint2 : Voltage Monitoring Relays
BulletPoint3 : Voltage Monitoring Relays
Color : Built-in CT
ExternallyAssignedProductIdentifier : 8995587086429
ItemName : 6IN1 Din Rail AC Monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric Energy Frequency Meter D52-2066(Built-in CT,AC 250-450V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : QAXIOQCS
ModelName : QAXIOQCS
ModelNumber : QAXIOQCS
NumberOfItems : 1
PartNumber : QAXIOQCS
ProductDescription : Ammeters
Parameter
D52-2066
Technical Indicators
1.Accuracy:1%±2 words
2. Range: AC voltage: AC 40.0-300.0V or AC 250.0-450.0V(You should select one type of the meter in your order)
AC Current:AC 0-100.0A, the current resolution is 0.01A.
Frequence: 45.0Hz-65.0Hz
Power Factor: 0.00-1.00PF
Electric Power: 0-450000W, the electric power resolution is 0. 1W when measure electric power between
0-9999.9W, otherwise the electric power resolution is 1W.
Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric
engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh
3. Speed: 2 times per second

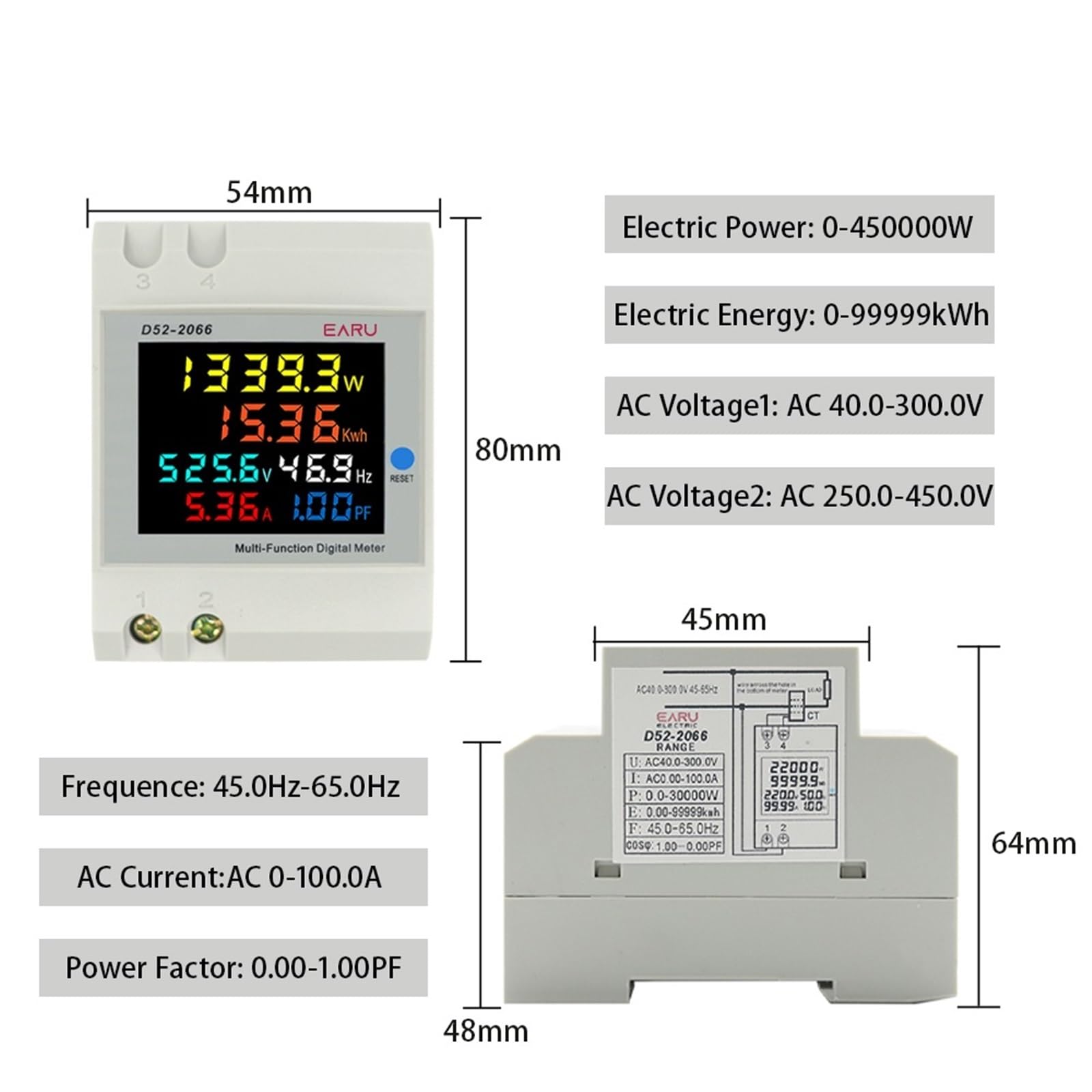

4. Size:54×80×64
5. Installation: Din-Rail
Application Method
1. According to connection graph, connect the green wire of secondary current transformer to the blueterminal of meter and make the wire of measurement circuit through the hole in the current transformer.
2. Supply power and start to measure and display the result.
3. Press down the button last for 5 second, the electric energy will to be zero.
Attentions:
1. The meter will be destroyed when you make wrong connection method with voltage
2. The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to input (green terminal) and secondary current transformer (blue terminal). measure square wave, output of inverter and correction sine wave.
Package included:
1 piece Meter Built-in or External Current transformer 1English instructions
==========
Model Number : D52-2066
Dimensions : 54*80*64
DIY Supplies : ELECTRICAL
Accuracy Class : 1% +/- 2 words
Display Type : Digital Only
AC voltage : AC 40.0-300.0V,AC 250.0-450.0V
AC Current : AC 0-100.0A

ProductSiteLaunchDate : 2024-10-28T08:12:09.677Z
Size : AC 250-450V
UnitCount : 1
UnspscCode : 41113600
