Specification
Brand : QAXIOQCS
BulletPoint1 : Ammeters
BulletPoint2 : Energy Meters
BulletPoint3 : Voltage Monitoring Relays
Color : DTS024M
ExternallyAssignedProductIdentifier : 8995587137640

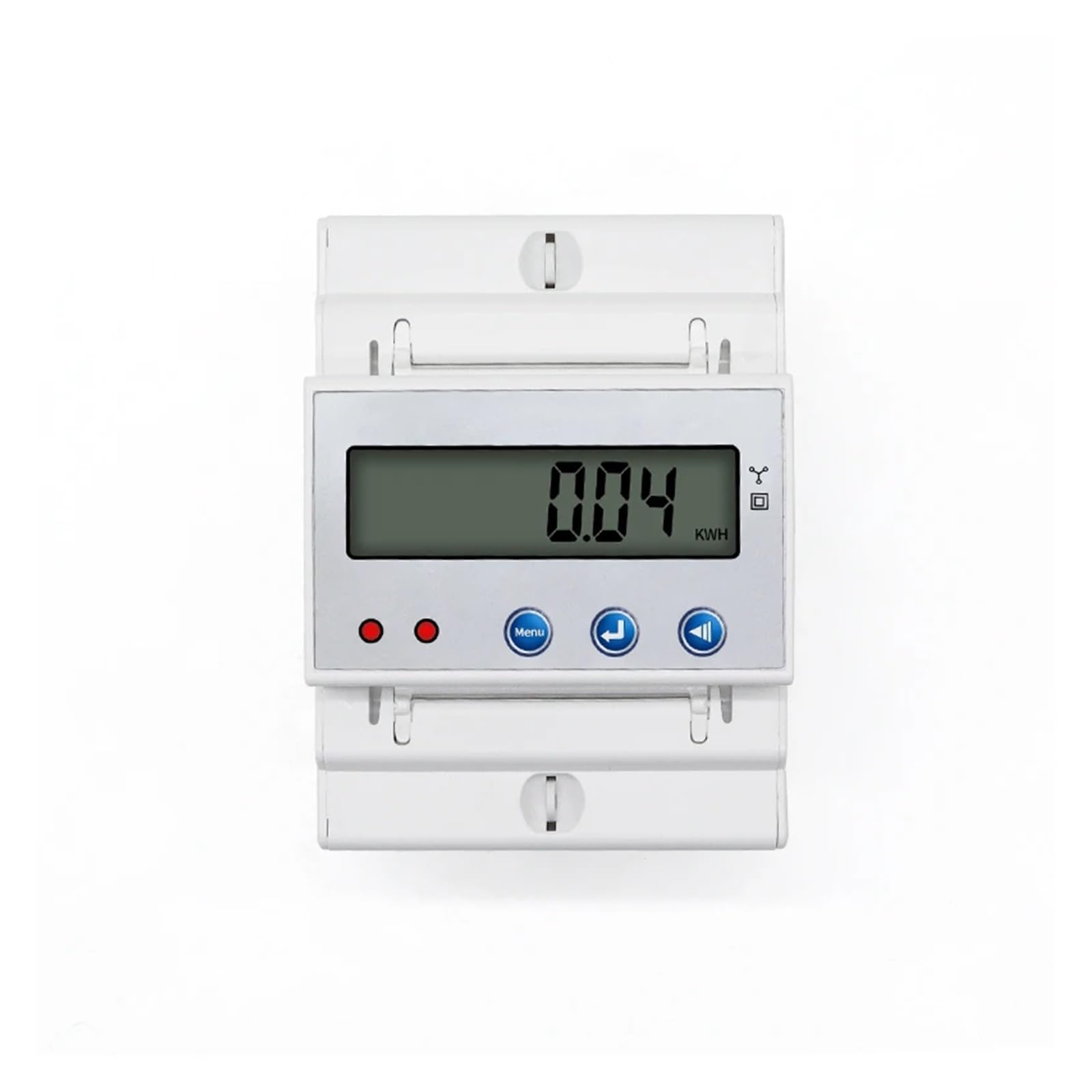

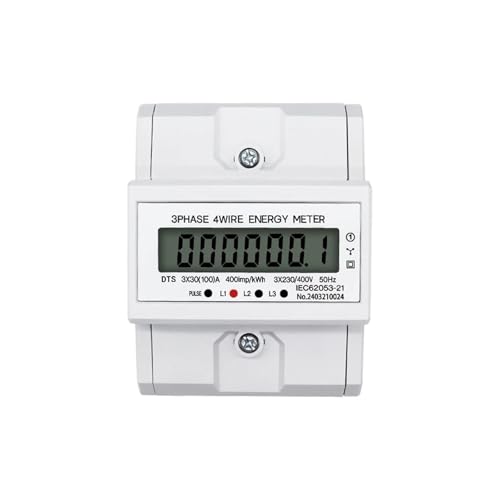

ItemName : AC230V 100A LCD Digital Display Power Meter in Energy Meters Smart Electric Meter 3 Phase Kwh Meter Ammeter(DTS024M)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : QAXIOQCS
ModelName : QAXIOQCS
ModelNumber : QAXIOQCS
NumberOfItems : 1
PartNumber : QAXIOQCS
ProductDescription : Ammeters
DTS024 Only measuring electrical energy
Model:DTS024
Voltage:AC230V/400V
Constant Pulse: 400imp / kWh
Power Consumption: 2W, 10VA
Display: LCD 6+2
Size:3.97 X 2.99 X 2.55inch
MAX Current:100A
Frequency:50/60Hz
Operating Temperature: -20 ~ 50
DTS024M Multi functional voltage, current, electrical energy, power factor RS485, etc
Describe
It can directly and accurately measure AC active energy with a rated frequency of 50/60Hz. The LCD displays total active/reactive energy, input/output active/reactive energy, three-phase voltage, current, total/phase active power, total/phase power factor: frequency and other information. It has the characteristics of good reliability, small size, light weight, beautiful appearance, and flexible and convenient installation.
Specifications
1. 35mm DIN standard rail installation, in accordance with DINEN-50022 standard
2. High accuracy measurement of active energy, active energy level 1 and reactive energy level 2, or active energy level 0.5 and reactive energy level 2
3. LCD 5+2 bit display (99999.99kWh), without backlight
4. Passive pulse output, compliant with DIN43864 standard
5. LED indicator pulse output
Package Included
1 × Multi function watt hour meter
Dimensions : 3.97 X 2.99 X 2.55inch
Operating Temperature : -10-+50
Measuring Energy Range : 999999.99kwh
Phase : Three Phase
Model Number : DTS024 DTS024M
Max Operating Current : 80A - 99A
Rated Voltage : 230V
Power Supply : AC
Display Type : LCD
DIY Supplies : ELECTRICAL
Voltage Monitoring Relays
ProductSiteLaunchDate : 2024-10-29T07:00:37.182Z
Size : One Size
UnitCount : 1
UnspscCode : 39122300
