Specification
Brand : AirheadStorm
BulletPoint : Package Qty：10pieces
BulletPoint1 : [WIDE VOLTAGE RANGE] This voltage monitoring relay operates effectively within a DC range of 6 to 80V, making it suitable for various applications. With a robust contact load of 30A at 250V AC or 30V DC, it s reliable performance under demanding conditions.
BulletPoint2 : [ADJUSTABLE TIME DELAY] Customize your operation with an adjustable delay time from 0 seconds to 999 seconds. This feature allows you to set precise timing for both opening and closing modes, enhancing control over your electrical systems.
BulletPoint3 : [FOUR FUNCTIONAL MODES] Experience versatility with four operational modes, including on-delay and off-delay timers. This relay can be tailored to meet specific voltage control needs, providing flexibility in diverse applications.
BulletPoint4 : [COMPREHENSIVE PROTECTION] Designed for voltage monitoring and charge/discharge control, this relay safeguards against overvoltage and undervoltage situations. It is an essential component for protecting sensitive equipment in various fields.
BulletPoint5 : [SIZING REMINDER] Please compatibility by checking your specifications before purchase.
Color : as picture show
ExternallyAssignedProductIdentifier : 8995585053270
ItemName : DC 6-80V Voltage Detection Charging Discharge Monitor Relay Switch Controller With Case, Time Delay Relay, Load Discharge Controller For Voltage Monitoring, Charge
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : AirheadStorm
Material : copper
MaximumSwitchingVoltage : 240 volts
ModelName : TEZLUCAZ
ModelNumber : 1J6I36J7XZ321RA0HQ1TJ13514QN
NumberOfItems : 1
OperationMode : Automatic
PartNumber : 1J6I36J7XZ321RA0HQ1TJ13514QN
ProductDescription :

Features:

The working power supply is DC 6 to 80V, and the contact load is 30A, 250V AC or 30V DC. High-quality voltage monitoring relays are for durable, fast in response time, and more efficient.

Supports delayed opening and closing modes, and the delay time is adjustable from 0s to 999S.

Provides 4 working modes: relay closing delay time and display closing setting: A voltage control timer (on delay), B voltage control timer (off delay); voltage control timer B (off delay). And the voltage range is controlled to 2. and 2.

It has 1voltage detection channel and a set of relay switch outputs (normally open, normally closed). The time relay can be controlled by voltage detection to achieve multiple functions.

It can be applied to voltage monitoring, charge and discharge control, overvoltage and undervoltage protection and other fields.

Parameters:

1 set of conversion: Normally Open and Normally Closed

Contact Load:

NO: 30A/250V AC or 30A/30V DC

Normally Closed: 20A/250V AC or 20A/30V DC

*Note: Since high voltage DC will damage the relay contacts, the load current above 60V DC is less than 10A.

Contact resistance: ≤100mΩ (1A, 6V DC)

Mechanical life: 10 million times

Electrical life: >100,000 (10A at 250V AC)

To turn off the display, the minimum current value is 4mA/24V (relay disconnected).

Automatically save settings after power failure.

Specifications:

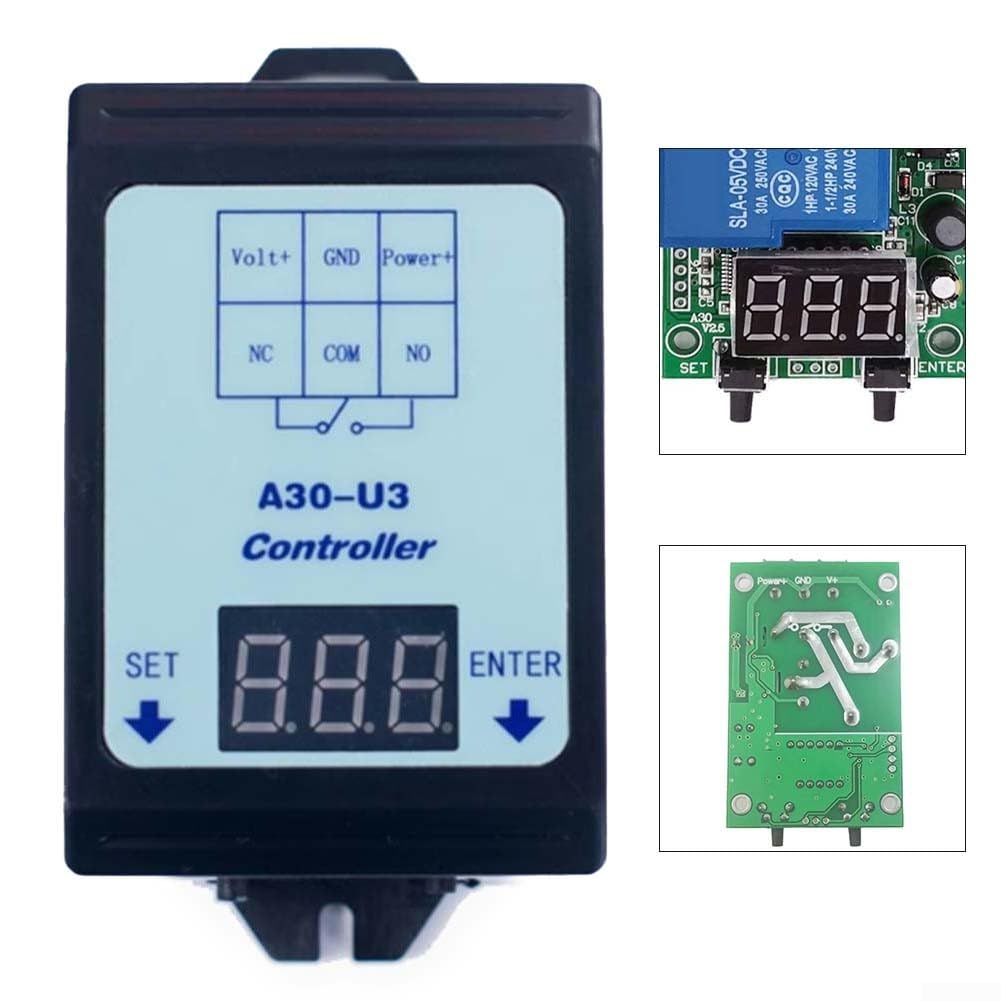

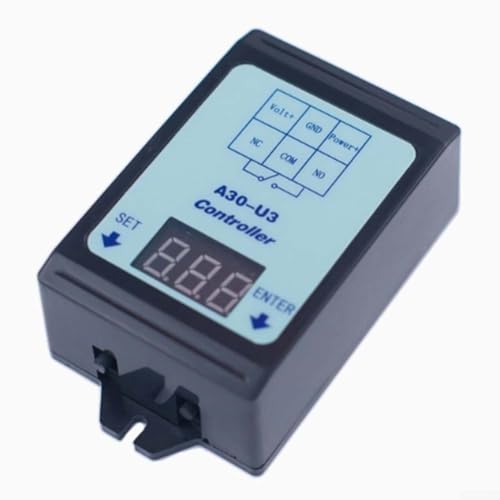

Part name: A30-U3 voltage relay

Material: ABS

Color: blue

Output timer range: 0 to 999 seconds (when the voltage reaches the set value, the relay will delay opening or closing)

Detection sampling delay: 0.1 to 0.9 seconds (detection sensitivity)

Voltage detection range: DC 0 to 99.9V, error: ±0.1V

Adjustable voltage upper and lower limits: DC 0 to 99.9V

Working power supply: DC 6 to 80V (up to 60V battery)

Size: 9.4 * 5.2 * 3cm / 3.7 * 2.04 * 1.18 inches

Package contents:

1 * A30-U3 voltage relay

1 * User manual (English)

ProductSiteLaunchDate : 2025-03-28T07:02:24.293Z
Size : 110V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 39122200
