Specification
Brand : QAXIOQCS
BulletPoint1 : Ammeters
BulletPoint2 : Energy Meter
BulletPoint3 : Voltage Monitoring Relays
Color : TAC1101
ExternallyAssignedProductIdentifier : 8995587085712

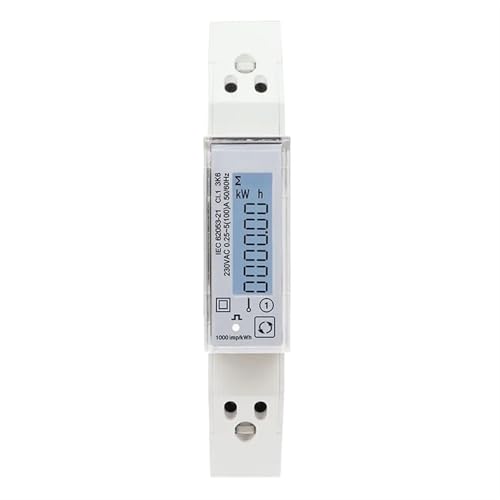

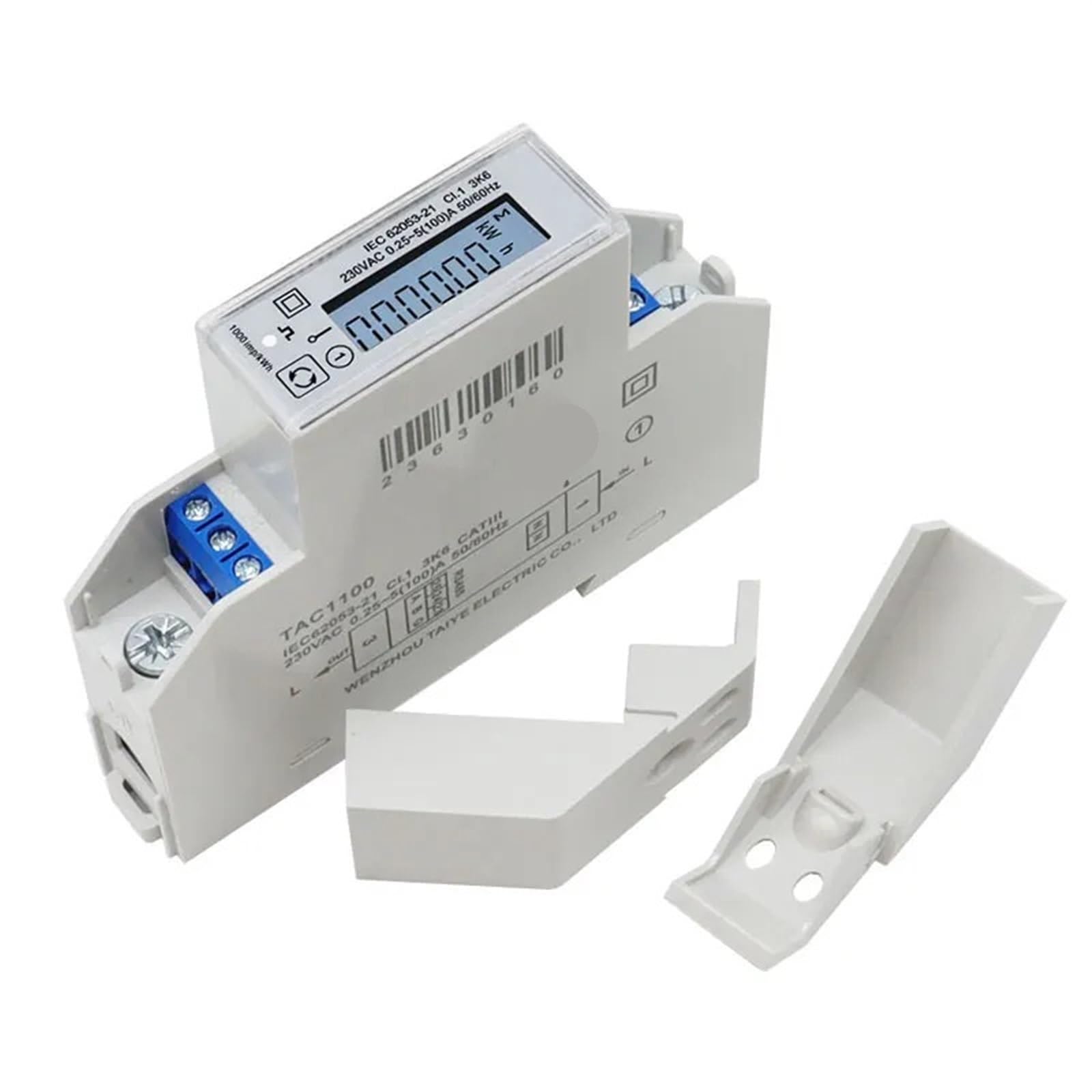

ItemName : Din Rail Energy Consumption Multi Function Watt Hour Meter 100A RS485 230V SDM120 V A PF Hz(TAC1101)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : QAXIOQCS
ModelName : QAXIOQCS
ModelNumber : QAXIOQCS
NumberOfItems : 1
PartNumber : QAXIOQCS
ProductDescription : Ammeters
Description
TAC1100 series products are multi-functional electric energy meters designed for electric energy monitoring of photovoltaic inverter, statistical analysis of new energy electricity consumption, power monitoring needs of power system utilities and intelligent buildings.
Please note that TAC1101 is a mulit tariff style
The multi-tariffs function refers to the function that the meter realizes time-sharing measurement of electric quantity.
Specification
Active energy:0 to 999999.999 kWh
Reactive energy:0 to 999999.999 kvarh
Rate voltage:230 Vac
Measured range:176 to 275 Vac
Frequency range:45 to 65 Hz
Measured range:0.005 to 100 A, basic current (Ib) is 5A
Dimensions (W X H X D):18 x 116 x 72 mm
Operating Temperature:-25 to +55
Interfaces standard and protocols:2-wire RS485, Modbus RTU
Buad rate:default is 9600 bps
Touch buttons
Package Included
1 × TAC1100 Energy Meter
==========
Dimensions : 18 x 116 x 72 mm
Operating Temperature : -25 to +55
Accuracy Class : 1
Measuring Energy Range : 0 to 999999.999 kWh
Phase : single phase
Model Number : TAC1100
Max Operating Current : 80A - 99A
Rated Voltage : 230V
Power Supply : AC
Display Type : LCD
Voltage Monitoring Relays
ProductSiteLaunchDate : 2024-10-28T08:12:06.610Z
Size : One Size
UnitCount : 1
