Specification
Brand : Generic
BulletPoint : 460
BulletPoint1 : [WIDE VOLTAGE RANGE] This voltage monitoring relay operates effectively within a DC range of 6 to 80V, making it suitable for various applications. With a robust contact load of 30A at 250V AC or 30V DC, it s reliable performance under demanding conditions.
BulletPoint2 : [ADJUSTABLE TIME DELAY] Customize your operation with an adjustable delay time from 0 seconds to 999 seconds. This feature allows you to set precise timing for both opening and closing modes, enhancing control over your electrical systems.
BulletPoint3 : [FOUR FUNCTIONAL MODES] Experience versatility with four operational modes, including on-delay and off-delay timers. This relay can be tailored to meet specific voltage control needs, providing flexibility in diverse applications.
BulletPoint4 : [COMPREHENSIVE PROTECTION] Designed for voltage monitoring and charge/discharge control, this relay safeguards against overvoltage and undervoltage situations. It is an essential component for protecting sensitive equipment in various fields.
BulletPoint5 : [SIZING REMINDER] Please compatibility by checking your specifications before purchase.
Color : as picture show
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 8995585053270

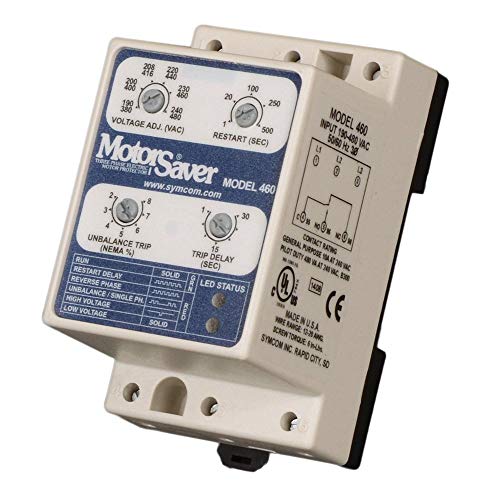

ItemName : Generic 460 3-Phase Voltage Monitor 190-480VAC, Automatic Operation, Voltage Monitoring Relay, Silver Normally Open Contact, DIN Rail Mount, 10A, 480VAC Max Switching
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 2.5 inches
ItemPackageDimensions_Width : 3 inches
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : LITTELFUSE
Material : Copper
MaximumSwitchingVoltage : 240 volts
ModelName : TEZLUCAZ
ModelNumber : 1J6I36J7XZ321RA0HQ1TJ13514QN
MountingType : DIN Rail Mount
NumberOfItems : 1
OperationMode : Automatic
PartNumber : 460
ProductDescription : The 460 is a 3-phase voltage monitor that protects 190-480VAC or 475-600V, 50/60Hz motors regardless of size. The product provides a user selectable nominal voltage setpoint and the voltage monitor automatically senses line voltage. This unique microcontroller-based voltage and phase-sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions such as low, high, and unbalanced voltage, loss of any phase, and phase reversal. When a harmful condition is detected, the MotorSaver output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level for a specified amount of time (restart delay). The trip and restart delays prevent nuisance tripping due to rapidly fluctuating power line conditions. All 460 models feature adjustable 1-30 second trip delay, 1-500 second restart delay, 2-8% voltage unbalance trip point
ProductSiteLaunchDate : 2023-03-07T22:07:04.111Z
Size : 110V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 39122300
