Specification
Brand : GOTOTOP
BulletPoint1 : [Standard Modular Structure] The protector features a 35mm guide rail installation and ultra-wide voltage design, suitable for worldwide use.
BulletPoint2 : [Automatic/manual Reset] Reset options cater to different situations, providing flexibility for users.
BulletPoint3 : [Real-time Monitoring] Offering comprehensive protections, including overvoltage, undervoltage, voltage unbalance, phase error, phase loss, and zero line disconnection.
BulletPoint4 : [Adjustable Values] Users can adjust overvoltage, undervoltage, unbalance values, and action times for customized .
BulletPoint5 : [Versatile Applications] Ideal for various settings such as machine tools, cranes, control cabinets, compressors, cutting machines, elevators, air conditioners, freezers, water pumps, charging piles, and motors.
Color : One Color
ExternallyAssignedProductIdentifier : 9050065777806

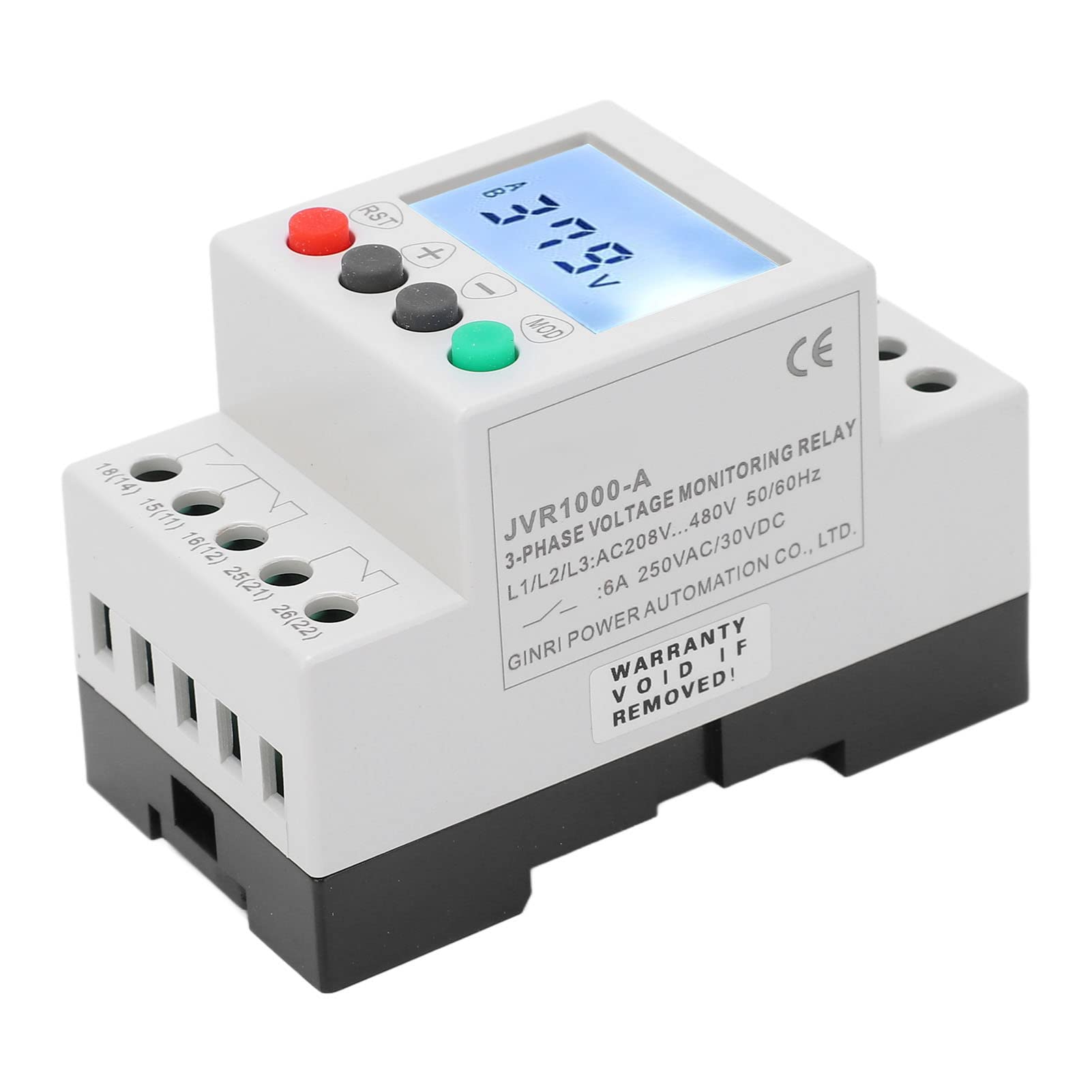

ItemName : Voltage Phase Sequence Protector, 3 Phase 3 Wire Over, Automatic Reset, Real Time Monitoring, for Machine Tool Crane Control Cabinet
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 9 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-monitoring-relays
Manufacturer : GOTOTOP
ModelName : XSVQQKQG
ModelNumber : GOTOTOPs4zg9w6htr
NumberOfItems : 1
PartNumber : GOTOTOPs4zg9w6htr
ProductDescription : Spec:

Item Type: Voltage Phase Sequence Protector
Material: ABS
Input Circuit: L1, L2, L3
Rated Supply Voltage: 208-480VAC 50/60Hz
Working Frequency: 45-65Hz
Output Type: 1CO and 1NC
Overvoltage and Undervoltage Action Time: 0.1-999s
Unbalance Rate: 1-50%
Unbalanced Hysteresis: 1-10%
Unbalanced Delay: 0.1-999s
Phase Loss Action Time: 0.1-30s
Phase Error Action Time: 0.1-30s
Power On Delay: 0-999s
Reset Mode: Auto Manual
Reset Delay: 0.1-999s
Display Mode: Chinese LCD display each action status
Form: 1 group of normally open and normally closed , 1 group of normally closed
Capacity: 6A 250VAC 30VDC (resistive)
Dimension(LxWxH): Approx.80x43x54mm/3.1x1.7x2.1in
Installation Method: 35mm guide rail
Class: IP20
Working Environment: -25℃ to 65℃, ≤85%RH
Mechanical Durability: 1,000,000 times
Dielectric Strength: >2kVAC 1min



Package List:
1 x Voltage Phase Sequence Protector1 x Manual




ProductSiteLaunchDate : 2024-10-26T17:03:43.305Z
Size : G2R-2 DC24V
UnitCount : 1
UnspscCode : 52000000
