IncludedComponents : DC 5V/12V/24V 4ch Dip Switch relay module
ItemName : 4ch DC 5V 12V 24V DIP Switch Delay Relay Module Flip-Flop Latch Bistable Self-Locking Interlock Latch Power Conditioner (6 PCS 12V)
ItemPackageDimensions_Height : 44.704 centimeters
ItemPackageDimensions_Length : 30.48 centimeters
ItemPackageDimensions_Width : 44.704 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-testers
Manufacturer : eletechsup
Material : copper
ModelName : PRX-69D
ModelNumber : IO26G04
NumberOfItems : 1
NumberOfLithiumIonCells : 3
PackageLevel : unit
PartNumber : IO26G04
PowerSourceType : Battery Powered
ProductDescription :



Product Name: 4ch DC 5V 12V 24V DIP Switch Delay Relay Module Flip-Flop Latch Bistable Self-locking Interlock Latch Power Conditioner



 Package inlcuded:

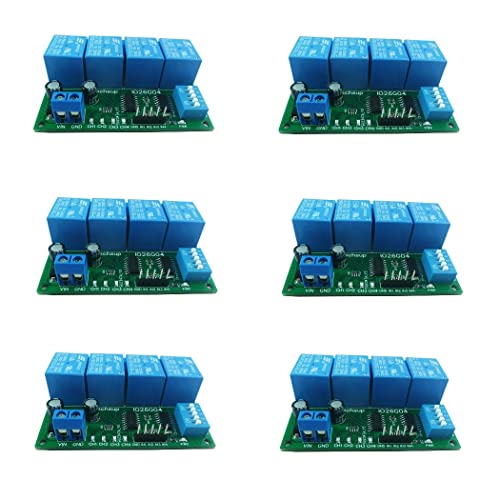

 1 PCS  / 6 PCS IO26G04 DC 5V/12V/24V 4ch Dip Switch relay module

 (Specific according to the version and quantity you choose)

Product Specifications:

1 Operating voltage: DC 12V(DC 5V/ 24V Optional)

2 Operating Current(DC 12V) : Standby current 4MA, 1 relay open 32MA, 2 relays open 59MA, 3 relays open 86MA, 4 relays open 114MA;

3 Size: 68 x 53.5 x 20 mm

4 Weight : 58g

5 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A



Product Features:

4 channel relay, each channel independently triggered independent delay, do not interfere with each other.

4 kinds of Functional mode: Delay/ Non-locking (Momentary ); Self-locking (Toggle); Inter-locking (Latch); Power sequencer(Relay sequence opens)

Low pulse trigger(Connect to the power supply GND via the trigger button or low level control via the MCU IO port)

The function mode and delay time are selected by the DIP switch.

Noun resolved:

NO : Relay normally open contact

COM : Relay common contact

NC : Relay normally closed contact

Relay open: COM connect NO.

Relay close: COM disconnect NO.

Typical applications:

Automotive electronics

AC DC Motor

Audio amplifier Sequential power up.

Power Conditioner/Sequencer

LED

Smart Home

Emergency lighting

MCU development board

Toy car

UNO MEGA2560

Car delay power off function

how to use:

Select the desired function mode and delay time via the DIP switch on the board.

Note: Re-power up after changing the Dip switch



Wiring diagram:

1 DC 12V Control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, toy car and

other DC 12V equipment





2 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment
