Specification
Brand : Eujgoov
BulletPoint1 : The current measure range is 50A,100A,200A,300A depend on the external shunt specification
BulletPoint2 : It is mainly used for measuring DC voltage,current,active power,frequency and energy consumption
BulletPoint3 : There are 10 different kits to choose,enough to meet your various need
BulletPoint4 : The application layer use the ModbusRTU protocol to communicate,it only supports function codes such as 0x03,0x04,0x06,0x41,0x42,etc
BulletPoint5 : Physical layer use UART to RS485 communication interface,baud rate is 9600,8 data bits,2 stop bit,no parity
Color : 200-450v 45-65hz
ExternallyAssignedProductIdentifier : 7326878655917
ExternallyAssignedProductIdentifier1 : 0751007605889
ExternallyAssignedProductIdentifier2 : 751007605889
IncludedComponents : LM317 kit

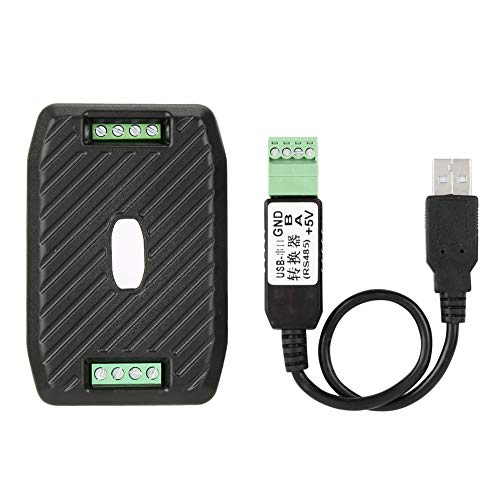

ItemName : DC Consumption Meter Watt Meter Meters DC Voltage Current Power Energy Consumption Meter PZEM-017 (PZEM-017+USB)
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-testers
Manufacturer : Eujgoov
Material : Plastic
MeasurementAccuracy : /
MeasurementType : Multimeter
MinimumOperatingVoltage : 80 volts_of_alternating_current
ModelName : Marhynchusdrs605pugb
ModelNumber : Eujgoov1hyem8g4sx-02
NumberOfItems : 1
PartNumber : Eujgoov1hyem8g4sx-02
PowerSourceType : Corded Electric
ProductDescription : Specification:
Model: PZEM-017
Voltage:
Measuring Range: 0.05-300V (When the test voltage is ＜7V, please use the independent power supply mode)
Resolution: 0.01V
Measurement Accuracy: 1%
Current:
Measuring Range: 0.02-300A (Can be matched with 50A, 100A, 200A, 300A four kinds of shunt)
Resolution: 0.01A
Measurement Accuracy: 1%
Power:
Measuring Range: 0.2-90kW
Resolution: 0.1W
Measurement Accuracy: 1%
Energy Consumption:
Measuring Range: 0-9999kWh
Resolution: 1Wh
Measurement Accuracy: 1%
Reset Energy: Use Software to Reset
Over Voltage Alarm:
Default High Voltage Threshold: 300V
Default Low Voltage Threshold: 7V
Communication Interface: RS485 Interface
Working Temperature: -20~60℃
Product Size: Approx. 9*6*2.3cm/3.5*2.4*0.9inch
Weight: Approx. 77g~287g / 2.7oz~10.1oz
Register address Description Resolution
0x0000 Voltage value 1LSB correspond to 0.01V
0x0001 Current value 1LSB correspond to 0.01A
0x0002 Power value low 16 bits 1LSB correspond to 0.1W
0x0003 Power value high 16 bits
0x0004 Energy value low 16 bits 1LSB correspond to 1Wh
0x0005 Energy value high 16 bits
0x0006 High voltage alarm status 0xFFFF is alarm,0x0000 is not alarm
0x0007 Low voltage alarm status 0xFFFF is alarm,0x0000 is not alarm
Register address Description Resolution
0x0000 High voltage alarm threshold(5~350V), default is 300V 1LSB correspond to 0.01V
0x0001 Low voltage alarm threshold)1~350V), default is 7V 1LSB correspond to 0.01V
0x0002 Modbus-RTU address The range is 0x0001~0x00F7
0x0003 The current range 0x0000: 100A 0x0001: 50A 0x0002: 200A 0x0003: 300A
Optional Kit
#1 1 x DC Consumption Meter
#2 1 x DC Consumption Meter 1 x RS485 to USB Cable
#3 1 x DC Consumption Meter 1 x 50A Shunt
#4 1 x DC Consumption Meter 1 x 100A Shunt
#5 1 x DC Consumption Meter 1 x 200A Shunt
ProductSiteLaunchDate : 2023-09-26T01:00:25.185Z
Size : T20159
SpecificationMet : CE
Style : 1pc
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41113600
UpperTemperatureRating : 50 degrees_celsius
