Specification
Brand : eletechsup
BulletPoint1 : It is a TTL_UART to LIN bus module.The module uses TJA1021 IC.It is mainly used for communication monitoring and maintenance of LIN bus equipment.
BulletPoint2 : The measured baud rate of the module can reach 57600bps,and the recommended maximum operating frequency is less than 20Kbps.
BulletPoint3 : 110V OUTLET TESTER WITH GFCI - Ensure the safety of your electrical outlets with our outlet tester. Its one-touch “GFCI test” feature verifies circuit breaker functionality instantly. Detect common wiring faults with ease, thanks to its comprehensive testing capabilities. Three indicator lights alert you to 7 possible solutions to wiring faults: ① Open ground ② Open neutral ③ Open live ④ Live/neu reverse ⑤ Live/ground reverse ⑥ live/ground reverse, missing ground ⑦ Correct
BulletPoint4 : VERSATILE DIGITAL CLAMP METER - Handle industrial and household electrical issues with precision using the RANGERHINO Digital Clamp Meter. Accurately measures AC Current (DO NOT MEASURE DC CURRENT), AC/DC Voltage Tester, Capacitance, Resistance, Diode, and Continuity. This clamp meter is a handy tool for solving industrial and household electrical issues
BulletPoint5 : NON-CONTACT VOLTAGE TESTING - This clamp meter features non-contact voltage testing with a sound alarm. When the Meter senses a weak AC signal, the display will show a horizontal bar and the buzzer will emit a slow, audible beep. when the Meter senses a strong AC signal, the display will show a more horizontal bar, and the buzzer will emit a quick beep.
BulletPoint6 : ♞ Portable Ccircuit Testing Tool: The testing pen comes with a pen sleeve hook, compact and lightweight, making it easy to carry. Very suitable for electricians, maintenance personnel, service personnel, etc. to quickly test energized circuits in the workplace or at home.
Color : 5 PCS
ExternallyAssignedProductIdentifier : 7625799178506
ExternallyAssignedProductIdentifier1 : 0759187321520
ExternallyAssignedProductIdentifier2 : 759187321520
IncludedComponents : TTL_UART to LIN Bus Module
ItemDisplayWeight : 0.25 pounds
ItemName : eletechsup TTL UART to LIN Can Bus Converter Data Analyzer TJA1020 K_LINE Date Bus TJA1021 Chip LINTTL3 for Communication Monitoring (5 PCS)
ItemPackageDimensions_Height : 9.6 centimeters
ItemPackageDimensions_Length : 3.1 centimeters
ItemPackageDimensions_Width : 5.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-testers
Manufacturer : eletechsup
Material : ABS, zinc alloy,glass, iron
MeasurementAccuracy : +/-0.05%
MeasurementType : Data Bit Rate
MinimumOperatingVoltage : 12 volts_of_direct_current
ModelName : USEUBU09049X
ModelNumber : LINTTL3
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : LINTTL3
PowerSourceType : Linttl3
ProductDescription :

Package:

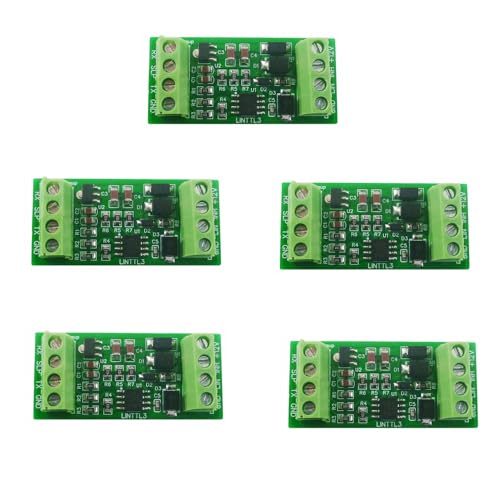

1PCS / 5 PCS TTL_UART to LIN Bus Module(Upgraded version)

1.Description:

It is a TTL_UART to LIN bus module.The module uses TJA1021 IC.It is mainly used for communication monitoring and maintenance of LIN bus equipment.

2.Feature:

1 Pure data signal conversion

2 Its data is stable

3 It has a green power indicator that shows the working status.

4 It can monitor and maintain LIN bus device communication.

3.Description:

1 Product Name:TTL_UART to LIN Bus Module

2 Product Chip:TJA1021

(Has been changed to fully compatible and more stable performance SIT1021T)

3 Working Voltage:DC 12V/24V

4 Work Temperature:-25℃~85℃

5 Work Humidity:5%~95%RH

6 Size:43*20*12mm

7 Weight : 7.3g

4.Specific Function Introduction:

1、 The measured baud rate of the module can reach 57600bps,and the recommended maximum operating frequency is less than 20Kbps.

2 、This module is just a level conversion module and does not participate in conversion analysis such as software protocols.

3、 When the module is connected to the computer's COM port,the computer can receive data,but it cannot communicate with your slave device as a host.The computer's com port cannot generate the 13-bit start bit in the LIN protocol,but it can be connected to a development board such as a microcontroller.

4、 Power supply anti-reverse connection protection, LIN bus anti-surge protection

5 、Compatible with 3.3V/5V microcontroller system

Pin description:

VIN: Power supply positive pole (DC 12V/24V)

INH:Used in host mode (please refer to the TJA1021 PDF)

LIN :LIN BUS

GND: Power supply negative pole

TX :TTL serial port data output

SLP :Sleep

RX : TTL serial port data input

GND:Ground wire(Connected to MCU)

ProductSiteLaunchDate : 2024-07-09T06:27:15.019Z
Size : Medium
SpecificationMet1 : CSA
SpecificationMet2 : ISO 9001
SpecificationMet3 : ETL
Style : TTL_UART to LIN Bus Module
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41113600
UpperTemperatureRating : 85 degrees_celsius
