Specification
Brand : iTrixx
BulletPoint1 : COLLECT EQUIPMENT DATA REMOTELY: Network enabled, no 3rd party server and no monthly fees, record time from 0 to 999,999.99 hours, no need to manually collect run time data from equipment, no more white board to update or tags to fill out
BulletPoint2 : EASY TO SETUP: The built-in web server provides quick access to setup and monitor the hour meters with no additional software required, two separate hour meters with independent triggers - relay output or digital input or even voltage input
BulletPoint3 : REAL TIME DATA ACQUISITION AND ALERTING: Built-in web interface, equipment operating hours can be read at any time with the Hour Collector desk app, or a standard web browser, receive audible/visual alerts when service is needed
BulletPoint4 : USE DATA WITH EASE: Read multiple equipment run time data with Hour Collector PC app remotely from one interface, automatic data transfer to a database with the API or send hour reading data via XML to manage equipment across single or multiple locations
BulletPoint5 : USED FOR ALL KIND OF STATIONARY EQUIPMENT: Powered by 12VDC or POE, it can be used for all kind of stationary equipment such as production machinery, compressors. Resettable and non-resettable option available
CircuitBreakerType : Standard
Color : Black
CurrentRating : 1 amps
ExternallyAssignedProductIdentifier : 18470021340550
IncludedComponents : No
ItemName : iTrixx-NHM Network Elapsed Time Hour Meter Counter Track Industrial Production Equipment and Machine Usage, Idle Time, Vibration, Voltage, Uptime/Downtime/Stops for Preventative Maintenance
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 8 inches
ItemPackageDimensions_Width : 2 inches
ItemPackageQuantity : 1
ItemTypeKeyword : voltage-testers
Manufacturer : Linor Technology, Inc.
Material : Composite
ModelNumber : NHM2
MountingType : Wall Mount
NumberOfItems : 1
NumberOfPoles : 2
PartNumber : 01-910-00024

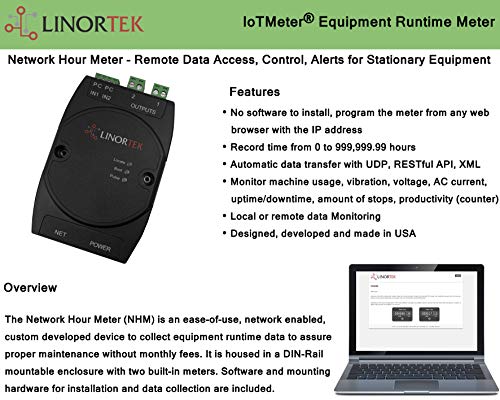

ProductDescription : The iTrixx-NHM is an ease-of-use, network enabled, custom developed remote meter reading device that can be used to log running time of equipment to assure proper maintenance of expensive machines or systems. It's built on Linortek’s existing TCP/IP web-based product platform and specially designed software that functions as an hour meter. You can monitor your machine from anywhere from your PC from a standard web browser or the free desktop apps, no additional software required and no monthly fees. The iTrixx-NHM is housed in a DIN Rail mountable enclosure. To mount the iTrixx-NHM onto a DIN rail, you will need to purchase a DIN Rail Mount Clip separately. With two digital inputs (Voltage input range of 5 - 24VDC), two relay outputs (1-Form-A relay 48VAC@8A Max), one analog input (for temperature & humidity sensor only), iTrixx-NHM can be activated by power input, digital input or relay output. It’s an ideal solution to monitor machine usage, Idle time, vibration, voltage, machine uptime/downtime, number of stops, and number of repetitive operations for any stationary equipment such as engines, pumps, compressors, generators, motors, machinery or severs which you want to accurately monitor usage at an affordable price. For anyone who needs to incorporate the hour readings into their own management software, you can transfer the data automatically with the RESTful API or send hour reading data via XML to manage equipment across single or multiple locations or simply use the file of csv data that is saved on the PC from the desktop app.
ProductSiteLaunchDate : 2016-04-21T07:00:00.000Z
Size : 168*26*4mm
Style : 40A
SupplierDeclaredDgHzRegulation : other
UnitCount : 1
UnspscCode : 41110000
Voltage1 : 230 volts
Voltage2 : 160 volts
