Specification
BatteriesRequired : 1
Brand : DiTFATOP
BulletPoint1 : CW-6000DN Specification: Voltage: AC 1P 110V, 60Hz; Current: 6~14.4A ; Max. power consumption: 1.51kW; Compressor power: 0.79kW 1.06HP; Refrigerating Capacity: 10679Btu/h; 3.13kW; 2691Kcal/h; Refrigerant: R-410a; Refrigerant charge: 650g; Precision: ±0.5℃; Tank Capacity: 14 L; Reducer: Capillary; Pump power: 0.6KW; Max. flow: 75 L/min; Max. pump pressuret: 40M; Inlet and Outlet: Rp1/2";
BulletPoint2 : Application: S&A CW-6000DN industrial water chiller is designed for 100W Solid-state La-ser, 22KW Engraver Spindle, 30W-300W Fiber La ser Cooling
BulletPoint3 : Temperature Control: S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature to avoid producing condensate water and protect the la-ser tube.You can adjust the water temperature under constant temperature.
BulletPoint4 : Multiple alarm protection: Independent production of sheet metal, evaporator and condenser. Adopt IPG fiber la-ser for welding and cutting sheet metal. The la-ser will stop working once it receives alarm signal from the water chiller for protection purpose. Multiple alarm function: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm
BulletPoint5 : 1. Machine Size: 26.4" x 18.5" x 35", 119lb; Package: 29" x 22.4" x 41" , 143.3lb. 2. CE ,RoHS and REACH approval; 3. Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out. 4. We provide industrial machines and supplies with professional support team, if any questions, kindly contact and we will respond within 24 hours.
Capacity : 320 gallons
Color : White
ExternallyAssignedProductIdentifier : 4861135554310
ExternalTestingCertification : IAPMO
ExternalTestingCertification1 : ANSI
ExternalTestingCertification2 : NSF
GpsrSafetyAttestation : 1
ItemDisplayWeight : 119 pounds

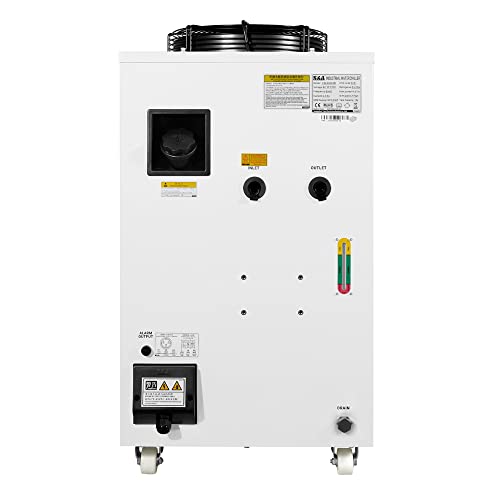

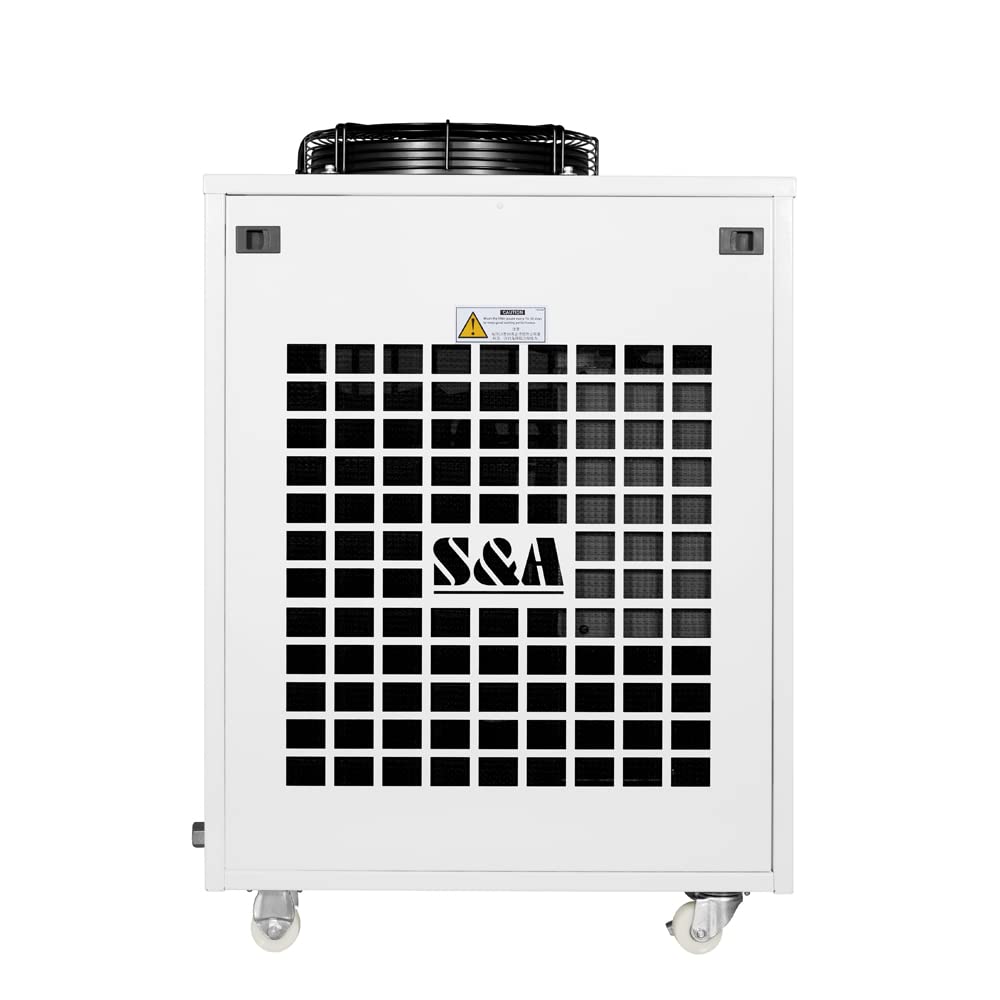

ItemName : DiTFATOP S&A CW-6000DN Industrial Water Chiller 110V for 100W Solid-State La-ser, 22KW Engraver Spindle, 30W-300W Fiber La ser Cooling Machine,AC 1P 110V, 60Hz
ItemPackageDimensions_Height : 41 inches
ItemPackageDimensions_Length : 29 inches
ItemPackageDimensions_Width : 23 inches
ItemPackageQuantity : 1
ItemTypeKeyword : water-coolers
Manufacturer : CAGSigns
Material : Metal
Material1 : Food grade and BPA free plastics
Material2 : High-quality activated carbon
Material3 : Ion exchange material
Material4 : Natural minerals
ModelName : CW-6000DNTY
ModelNumber : LUS24960
NumberOfItems : 1
NumberOfSettings : 2
PartNumber : LUS24960
PowerSourceType : Corded Electric
ProductBenefit : Reduces Chlorine
ProductBenefit1 : Reduce 99% chlorine
ProductBenefit2 : Lead free
ProductBenefit3 : Improve the taste of water
ProductBenefit4 : Easy to install
ProductDescription : CAUTIONS
We are authorized as "S&A" brand name product agent.
All of S&A water chillers are certified with design patent. Counterfeiting is not allowed, Please recognize S&A logo when you purchase S&A water chillers.
Intro
S&A CW-6000 series is high-precision compression refrigeration Water Chiller, with intelligent temperature control,completed configuration,perfect protection and alarm system.
S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature to avoid producing condensate water and protect the laser tube.You can adjust the water temperature under constant temperature.
Suggestion:
Intelligent temperature control mode for summer
Constant temperature control mode for winter

Specification
Voltage AC 1P 110V
Frequency 60Hz
Current 6~14.4A
Max. power consumption 1.51kW
Compressor power 0.79kW; 1.06HP
Nominal cooling capacity 10679Btu/h; 3.13kW; 2691Kcal/h
Refrigerant charge 650g
Pump power 0.6kW
Max. pump pressure 40M
Pump flow 75L/min
Refrigerant R-410a
Precision ±0.5℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Tank capacity 14 L
Inlet and outlet Rp1/2''
Dimension 26.4" x 18.5" x 35" (670 x 470 x 890mm)
N.W 54Kgs(119lb)
G.W 65Kgs(143.3lb)

Features
3000W cooling capacity;
±0.5℃ precisely temperature control
The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions.
Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.
Multiple power specifications; CE approval; RoHS and REACH approval.
Long working life and easy operation.


Adopt IPG fiber laser for welding and cutting sheet metal. The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

Equipped with water pressure gauges and universal wheels.
Water pressure gauges help monitor the discharge pressure of water pump while univeral wheels facilitate the moving of the chiller.

Inlet and outlet connector equipped.
Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

Cooling fan of famous brand installed.

The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.
User also can adjust the water temperature as needed.

Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the Accessories box before running the chiller.
ProductSiteLaunchDate : 2020-08-24T22:08:50.619Z
Size : 3 Count (Pack of 1)
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 11.8873
UnspscCode : 48101700
