Specification
Brand : GLOGLOW
BulletPoint1 : [Higher measurement yield] Measure total solar radiation with reflected and dispersed radiation capabilities.
BulletPoint2 : [Robust aluminum material] made from aluminum alloy for durability and precise measurements.
BulletPoint3 : for all climate] The quartz glass cover protects the environmental elements sensor, ensuring results.
BulletPoint4 : [Versatile use] Ideal for meteorology, energy, and construction applications with a wide range of energy supply.
BulletPoint5 : [Easy installation] Mount safely with screws and nuts included, ensuring rapid configuration and .
Color : white
ExternallyAssignedProductIdentifier : 4580507398641
IncludedComponents : Thermometer

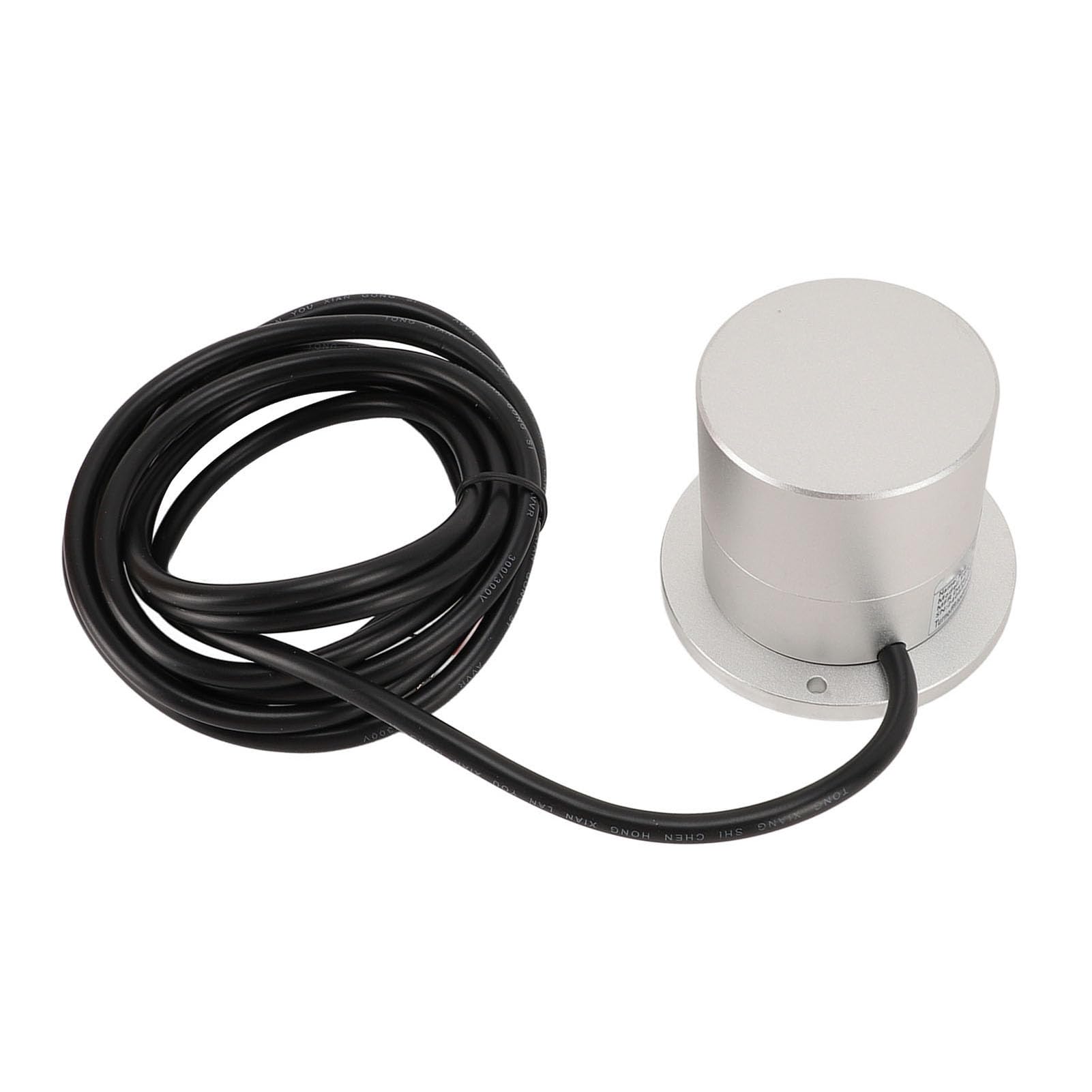

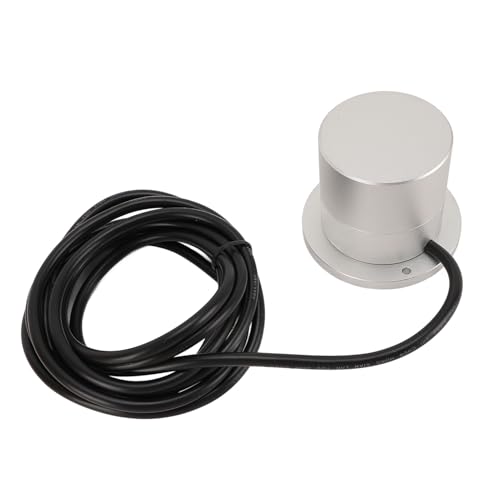

ItemName : Sun Time Meter (YGC-JYZ-KV-V2)
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : sport-weather-monitors
Manufacturer : GLOGLOW
ModelNumber : HEEPDDo9tsgkznmu-11
NumberOfItems : 1
PackageLevel : unit
PartNumber : HEEPDDo9tsgkznmu-11
ProductDescription : 1. Higher measurement capabilities: This sensor can accurately measure the total solar radiation within the spectrum range of 0.3 to 1.1 μm. When placed down, you can also measure the reflected radiation. In addition, with a shading loop, you can measure scattered radiation.
2. Aluminum construction: Premium aluminum alloy alloy, this solar radiation sensor offers lasting durability. Use a precise photosensitive component, ensuring superior stability and .
3. Outdose : The solar radiation detector is equipped with a precise quartz glass cover created through precise cold optical processing, effectively protecting it from environmental factors that could affect performance.
4. Easy to use: the cover can protect the solar radiation sensor during transport and prevent damage into adverse climatic conditions. Simply turn and unscrew the when it is in use.
5. Amplia application: With a range of energy supply from 9 to 30V and low consumption of 0.48W, this sensor is suitable for a wide range of applications in meteorology, energy, , construction and more.

Specification:
type: Solar radiation sensor
Material: Aluminum alloy
Weight: approx. 298.00g/10.5 Oz
Product size: approx. 65x52x49mm/2.56x2.05x1.93in
Distance from the lower hole: approx. 57 mm/2.24in
Wire order: Red wire: positive power
Green wire: negative power
Cable:
Power supply: 9 to 30V
Spectrum range: 300 to 1100 nm
Resolution: 1W/m2
Measurement range: 0 to 1500W/m2
Sensitivity: 7 to 14 μv/w m-2
: ± 5%
Load capacity: RL≤250Ω current output impedance
RL≥1kΩ voltage output impedance
Answer time: Coseno Answer: No Linearity: Annual variation: Operational environment: Temperature -40 ° C at 60 ° C; Humidity ≤100%Rh
Energy consumption: 0.48w
For the modbus CRC verification steps:
1. Initiate a 16 -bit record to Hex FFFF, called CRC registration.
2. Xor The first 8 bits of data with the low byte of the CRC registration and store the result in the CRC register.
3. Correct the content of the record by a bit, filling the highest bit with 0 and verify the lowest bit.
4. If the lowest bit is 0: Repeat step 3 (change again). If the lowest bit is 1: xor the CRC record with the A001 polynomial (1010 0000 0000 0001).
5. Repeat steps 3 and 4 for a total of 8 shifts, processing the complete 8 -bit data.
6. Repeat steps 2 to 5 for the following 8 -bit data. The final CRC record obtained is the CRC code (byte low first, byte high to the last).
Troubleshooting:
The value shown in the instrument is incorrect during the output. This may be due to wiring problems or communicate port insufficiency, avoiding correct data acquisition. Check the wiring to determine the correction and stability, make sure that the serial port is not being used by other devices and verify that the serial port configuration is correct.

How to use:
1. Make sure the assembly support is parallel to the ground.
2. Secure the mounting support sensor through the two mounting holes in the sensor with screws and nuts M3.
3. Avoid dismantling the sensor during installation.

Packaging list:
1 x Solar radiation sensor
1 x Specification

Grades:
1. Check if the package is intact and verify if the product model is consistent with the selection
2. Do not connect the cables with electricity, verify that the wiring is correct before lighting the energy
3. The sensor line length will affect the product output , do not change when using
4. The sensor is a precise device, do not disassemble the sensor, touch the of the sensor with cutting objects or corrosive liquids during use to avoid damage to the product
5. When the sensor is in use, remove the .
