Specification
Brand : QANYEGN
BulletPoint1 : STURDY METAL SHELL: Constructed with an all-metal shell, this Electric Reversible Worm Gear Motor is wear-resistant, providing excellent thermal conductivity. This durability makes it ideal for outdoor applications and environments where may be present, ensuring your geared motor remains functional and efficient over time.
BulletPoint2 : LOW NOISE USE WITH ADVANCED BEARING TECHNOLOGY: Equipped with a brass worm and double ball bearings, this worm gear motor significantly minimizes operational noise. The quiet performance is especially beneficial for home automation tasks, such as powering window openers and curtain machines, where a peaceful ambiance is essential.
BulletPoint3 : HIGH-PERFORMANCE GEARED MOTOR: The DC12V Geared Motor features a stainless steel output shaft with an 8mm diameter, ensuring high precise and smooth, silent use. This robust design is good for applications requiring good performance, such as robotic systems and automation projects, where noise reduction is crucial for maintaining a peaceful environment.
BulletPoint4 : LOW FRICTION AND HIGH LOAD CAPACITY: The gear of this geared motor is expertly ground and heat-treated, filled with imported lubricating oil, resulting in a low friction coefficient and impressive load-carrying capacity.
BulletPoint5 : VERSATILE APPLICATIONS WITH STRONG TORSION CONTROL: The DC geared motor is equipped with a governor that provides strong torsion, making it versatile for a wide range of applications. From curtain machines to window openers, this motor is designed to handle various tasks with ease, ensuring optimal functionality and control in your projects.
Color : #183
IncludedComponents : Pocket Clips
ItemName : QANYEGN 12V Geared Motor, Electric Reversible Worm Gear Motor, Worm Gear Motor Speed Reduction Machinery for Replacement (12V30RPM)
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 18 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemTypeKeyword : worm-gears
Manufacturer : QANYEGN
Material : Plastic
ModelName : QANYEGNaxwmgvg0e5-15
ModelNumber : QANYEGNaxwmgvg0e5-15
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : QANYEGNaxwmgvg0e5-15
ProductDescription :
Specification:
Item Type: Geared Motor
Model: 5840-31ZY
Working Voltage: 12V
Shaft Length: Approx. 15mm / 0.6in, D shaft length approx. 13mm / 0.5in
Shaft Diameter: Approx. 8mm / 0.3in, D shaft

Voltage V 12 12 12 12 12 12 12 12
Rated Speed RPM 400 200 130 50 30 20 12 10
Rated Torsion Kg.cm 3.4 6.2 10 20 40 60 70 70
Rated Current A 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
Maximum Torsion Kg.cm 8.5 16 25 50 70 70 70 70
Stall Current A 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 CCM2 DC Motor Governor Parameters:
DC motor regulator CW and CCW control
This governor uses PWM speed control technology, which has the characteristics of high conversion efficiency, wide speed range and stable performance. All of them use imported semiconductor original chips, and the circuits are stable after a number of tests such as voltage, current, and functions before leaving the factory.
Model: CCM2
Working Voltage: DC 10V-30V
Control Power: 12V x 3A=36W, 24V x 3A=72W, ＞24V, maximum 120W
Rated Current: 3A
Maximum Current: 5A
PWM Pulse Width Adjustment Range: 5%-95%
Potentiometer: Resistant value B10K, wire length is approx. 20cm / 7.9in, opening approx. 8mm / 0.3in
Speed Governor Size: Approx. 74 x 47 x 28mm / 2.9 x 1.9 x 1.1in
Potentiometer is used for speed regulation
CW and CCW switche is used to control forward, reverse, and stop

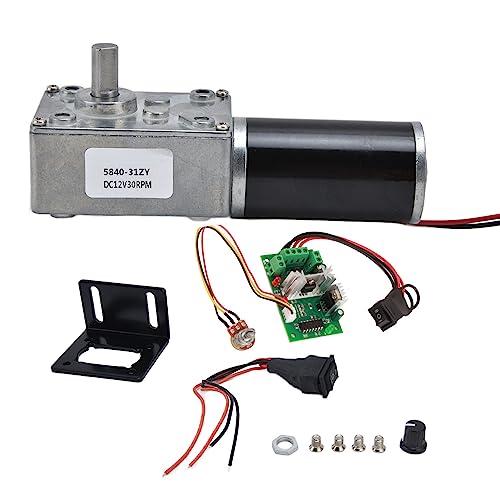

Package List：
1 x Motor
1 x Governor
1 x CW and CCW Switch
1 x Knob Cap
1 x Washer
1 x Bracket
4 x Mounting Screw

ProductSiteLaunchDate : 2024-10-28T13:54:11.830Z
Size : 12V30RPM
UnspscCode : 53120000
Voltage : 40 volts
Wattage : 120 watts
